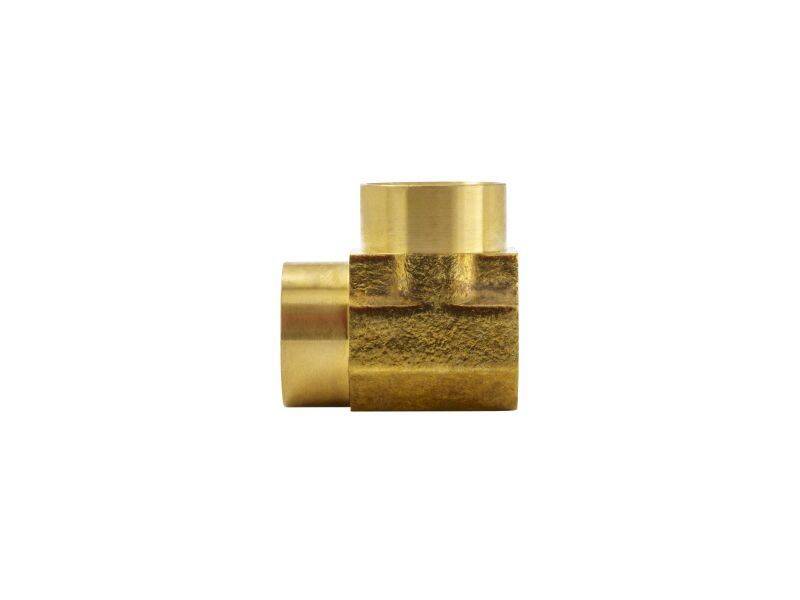

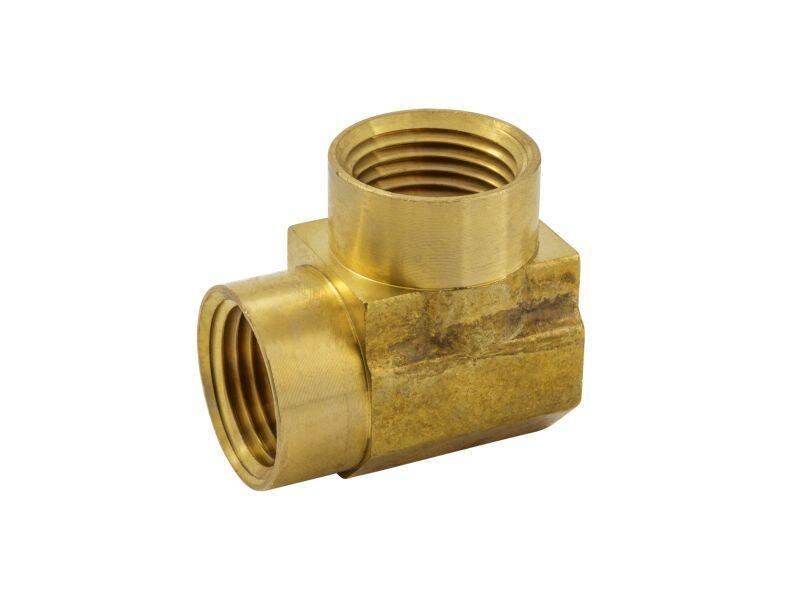

ProLine 1/2 in. FIP x 3/8 in. FIP Brass Elbow Fitting, 90° - Corrosion-Resistant, 1 -Pack
- Mfg.#
- BF-805NLB
- Sku#
- 2635373
- Diverts and connects plumbing lines
- Constructed of durable, lead-free brass
- Brass is corrosion-resistant and can be used indoors and outdoors

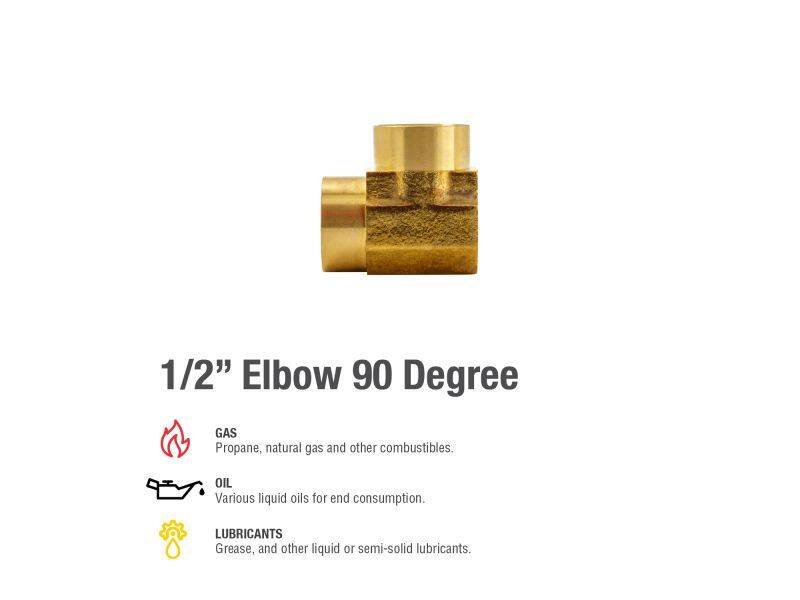

- Applications include air, grease, natural gas, oil, propane and water
- Compatible with brass pipe, copper tube and iron pipe-sized fittings
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Elbows provide an excellent method of diverting a plumbing line without the risk of causing kinks in the tubing. Constructed of lead-free brass, brass fittings are ideal for multiple potable water oil, gas and liquid plumbing systems. Brass fittings are corrosion-resistant and can be used in various plumbing applications such as air, grease, natural gas, oil, propane and water. This type of fitting is designed to be used with brass pipe, copper tubing and iron pipe.
Nominal information shown.
Specifications
General
| Elbow Angle | 90° |
|---|---|
| Elbow Feature | Corrosion-Resistant |
| Fitting Material | Brass |

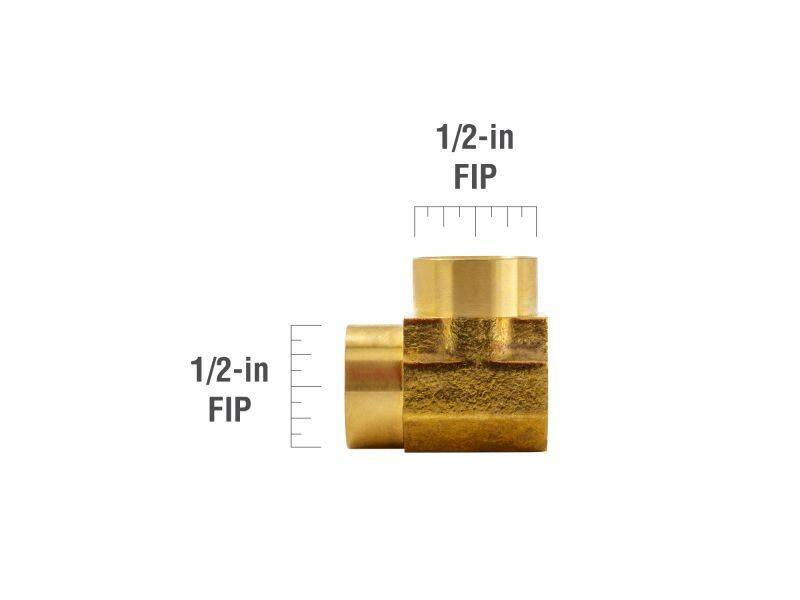

| Inlet Connection Size | 1/2 in |
| Inlet Connection Type | FIP |
| Inlet Size (Elbows) | 1/2 in. |
| Inlet Type (Elbows) | FIP |
| Max Pressure (PSI) | 200 |
| Max Temperature Rating | 250° F |
| Min Temperature Rating | -10° F |
| Outlet Size | 3/8 in |
| Outlet Size (Elbows) | 3/8 in. |
| Outlet Type | FIP |
| Outlet Type (Elbows) | FIP |
| PSI | 100 to 200 |
| Pack Qty | 1 |
| Potable Water Safe | Yes |
| Series | ProLine |
| Temperature Rating | Min: -10° F; Working: 73° F; Max: 250° F |
| Thread Type | Threaded |
| Type | Brass Elbow Fitting |
| Working Temperature Rating | 73° F |
Dimensions
| Height | 1 in |
|---|---|
| Length | 1.4 in |
| Weight | 0.19 lb |
| Width | 1.4 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1 yr Limited |
|---|---|
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | NSF/ANSI 372,NSF/ANSI 61 |
|---|
