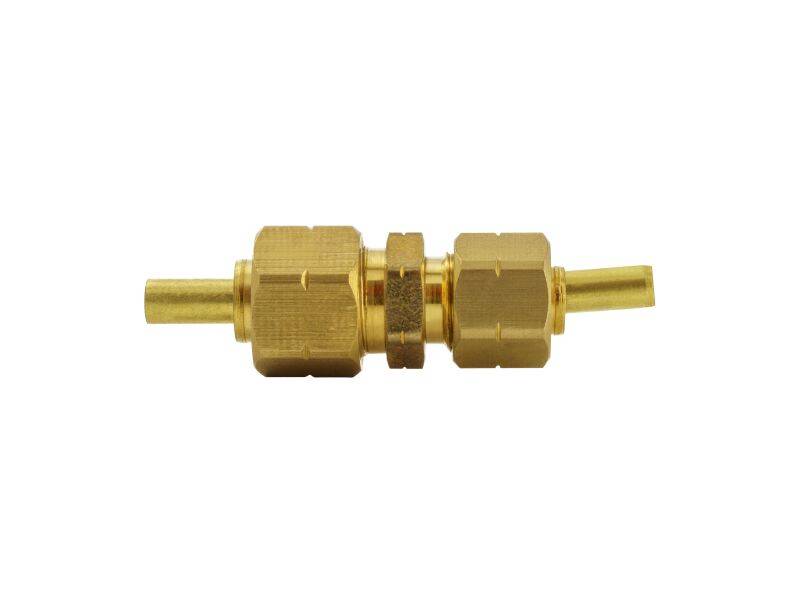

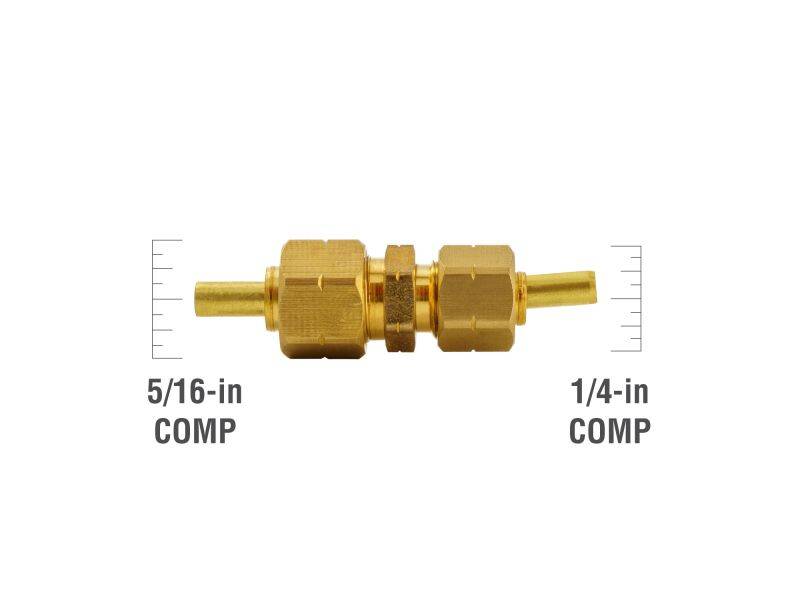

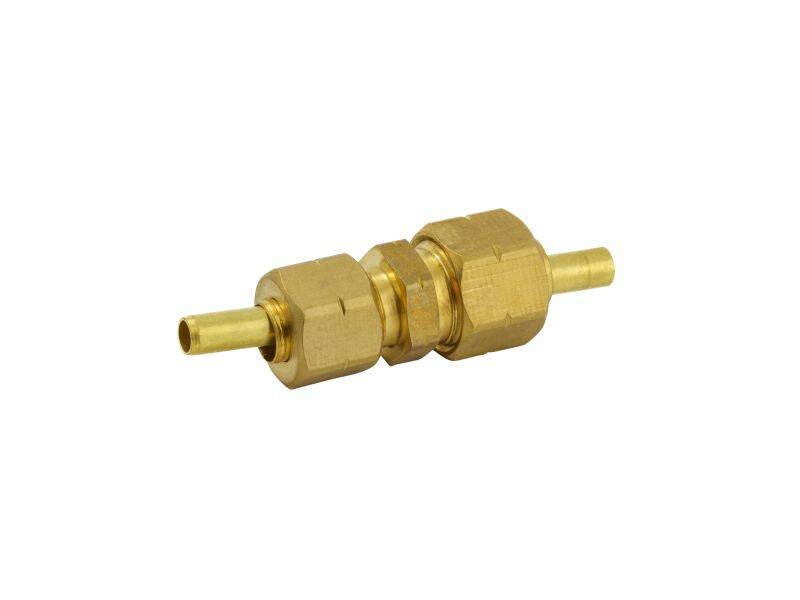

5/16-Inch COMP X 1/4-Inch COMP Brass Reducing Union
- Mfg.#
- CP-92BNLB
- Sku#
- 2634558
- Links two lengths of tubing into one continuous line
- Constructed of durable, lead-free brass
- Brass is corrosion-resistant and can be used indoors and outdoors
- Ferrules are included to compress onto the tubing
- Inserts are designed for use in vinyl or polyethylene tubing types
* Estimated stock levels as of Sat, Mar 7, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Unions connect two lengths of tubing together, further lengthening the plumbing line. Compression fittings are constructed of lead-free brass and are ideal for multiple potable water and other liquid plumbing systems. Each compression connection for each fitting comes with a ferrule and insert for a secure project installation. This type of fitting is ideal for connecting to aluminum tubing, brass pipe, copper tubing and polyethylene tubing.
Nominal information shown.
Specifications
General
| Connection Type 1 | COMP |
|---|---|
| Connection Type 2 | COMP |
| Inlet Connection Size | 5/16 in Dia |
| Material | Brass |
| Outlet Size | 1/4 in |
| PSI | 100 |
| Series | ProLine |
| Temperature Rating | Min: -10° F; Working: 73° F; Max: 250° F |
| Type | Reducing Union |
Dimensions
| Height | 0.56 in |
|---|---|
| Length | 2.1 in |
| Weight | 0.06 lb |
| Width | 0.63 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1 yr Limited |
|---|---|
| Prop 65 Warning |
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | NSF/ANSI 61,NSF/ANSI 372,NSF/ANSI 372 |
|---|
