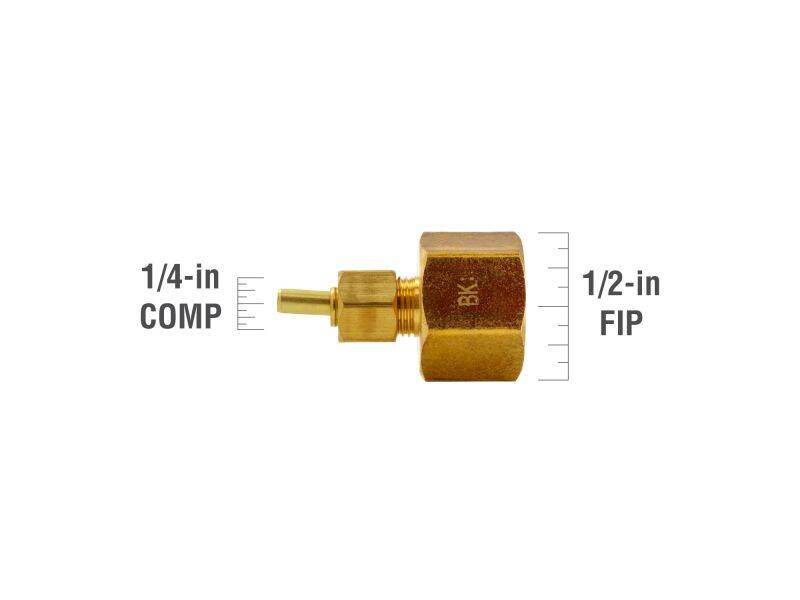

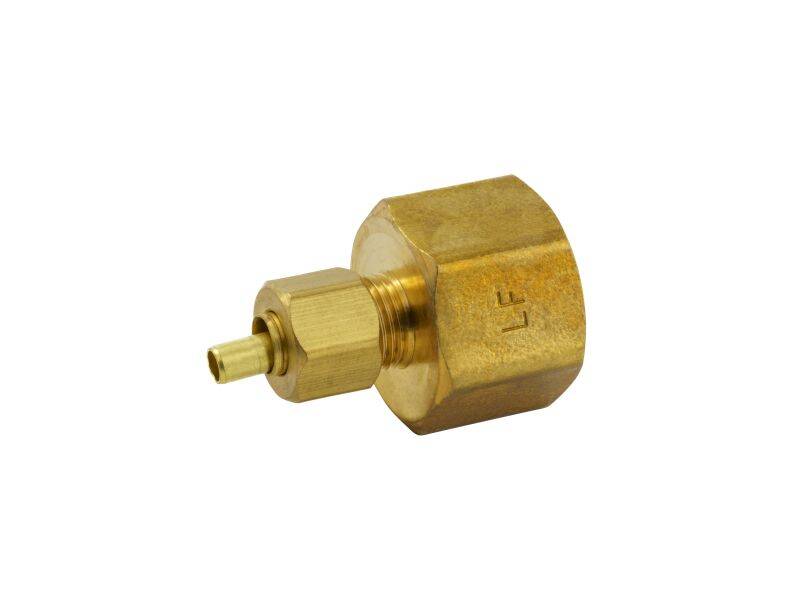

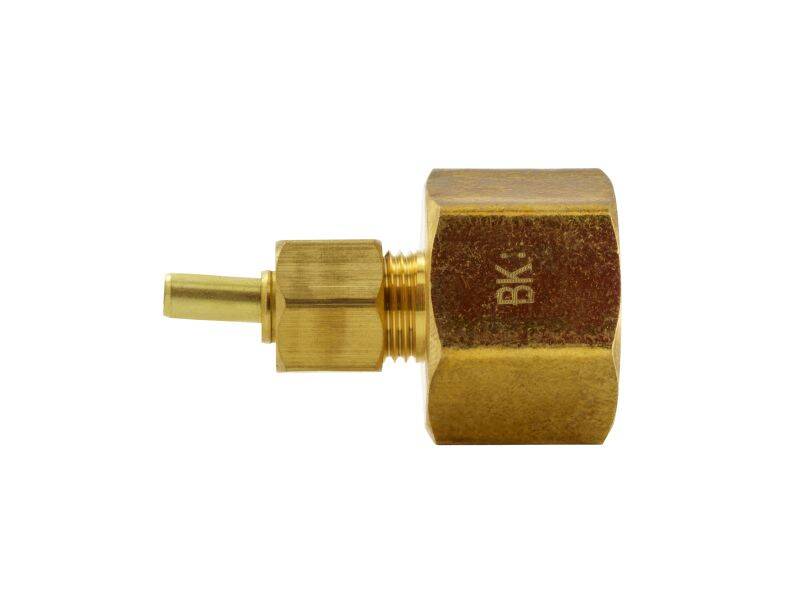

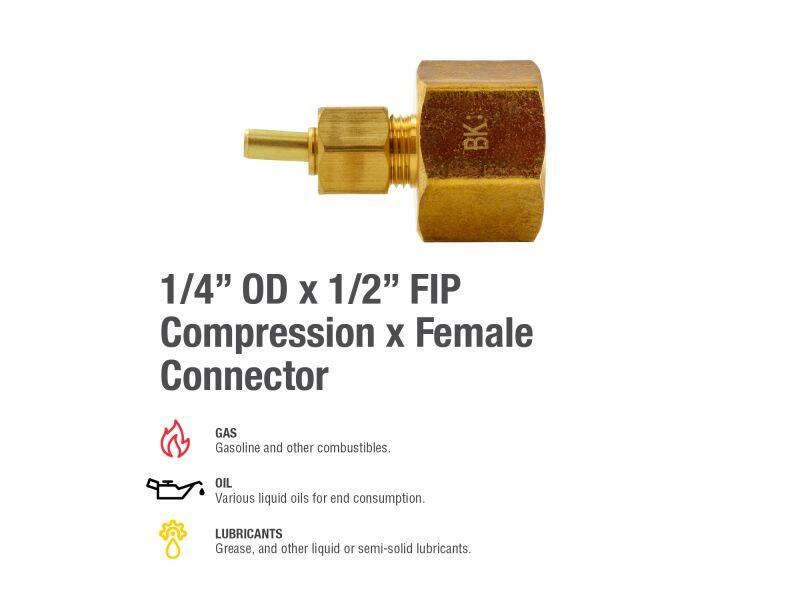

1/4-Inch COMP x 1/2-Inch FIP Brass Coupling
- Mfg.#
- CP-19NLB
- Sku#
- 2634152
- Converts male pipe threads into a compression connection
- Constructed of durable, lead-free brass
- Brass is corrosion-resistant and can be used indoors and outdoors
- Ferrules are included to compress onto the tubing
- Inserts are designed for use in vinyl or polyethylene tubing types
* Estimated stock levels as of Sat, Mar 14, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Couplings provide a secure method of transitioning a MIP pipe end into a compression connection. Compression fittings are constructed of lead-free brass and are ideal for multiple potable water and other liquid plumbing systems. Each compression connection for each fitting comes with a ferrule and insert for a secure project installation. This type of fitting is ideal for connecting to aluminum tubing, brass pipe, copper tubing and polyethylene tubing.
Nominal information shown.
Specifications
General
| Connection Type 1 | COMP |
|---|---|
| Connection Type 2 | FIP |
| Fitting Material | Brass |
| Inlet Connection Size | 1/4 in Dia |
| Inlet Connection Size (Fitting) | 1/4 in. |
| Inlet Connection Type (Fitting) | Compression |
| Material | Brass |
| Outlet Size | 1/2 in |
| Outlet Size (Fitting) | 1/2 in. |
| Outlet Type (Fitting) | FIP |
| PSI | 100 |
| Series | ProLine |
| Temperature Rating | Min: -10° F; Working: 73° F; Max: 250° F |
| Type | Brass Pipe Coupling |
Dimensions
| Height | 0.9 in |
|---|---|
| Length | 1.36 in |
| Weight | 0.1 lb |
| Width | 0.97 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1 yr Limited |
|---|---|
| Prop 65 Warning |
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | NSF/ANSI 61,NSF/ANSI 372 |
|---|
