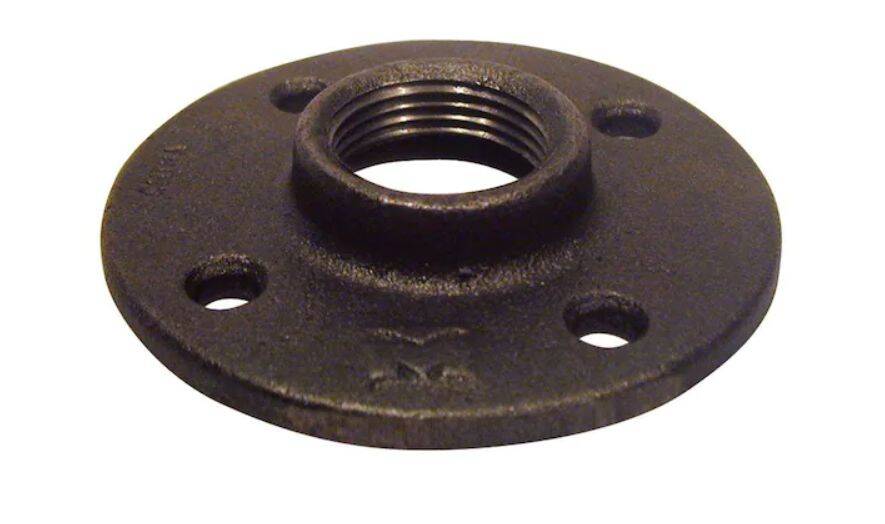

3/4 in. FIP Malleable Iron Black Pipe Floor Flange, 1-Pack
- Mfg.#
- 521-604HP
- Sku#
- 2618320
- Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
- 150-lb class malleable fittings
- Relative softness of metal helps provide a sure seal
- This fitting works up to 500 PSI at 150°F
- Threaded ends comply with ANSI/ASME B1.20.1 standards
* Estimated stock levels as of Fri, Apr 3, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Flanges allow for a secure piping connection to either the floor or wall. General uses for this product are for transporting lubricant, oil, grease, LP gases & fuel or to create your own DIY projects. This fitting is not designed for potable water applications.
Specifications
General
| Fitting Material | Malleable Iron |
|---|---|
| Fitting Nominal Size | 3/4" |
| Inlet Connection Size | 3/4 in Dia. |
| Inlet Connection Type | FIP |
| Temperature Rating | Min: -20° F; Working: 77° F; Max: 347° F |
| Type | Black Pipe Floor Flange |
Dimensions
| Height | 0.63 in |
|---|---|
| Weight | 0.418 lb |
| Width | 3.43 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1 yr Limited |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | Malleable iron fittings meet material: ANSI/ASTM A-197; dimensions: ANSI/ASME B.16.3, B-16.14, B16-39 and Threads: ANSI/ASME B1. 20.1 specification and 150 class ANSI/ASME B 16.3 dimensions. Male threaded connection complies with ANSI B1.20.5 |
|---|
