- Some stock photographs may show options that are not included. Please check product description.

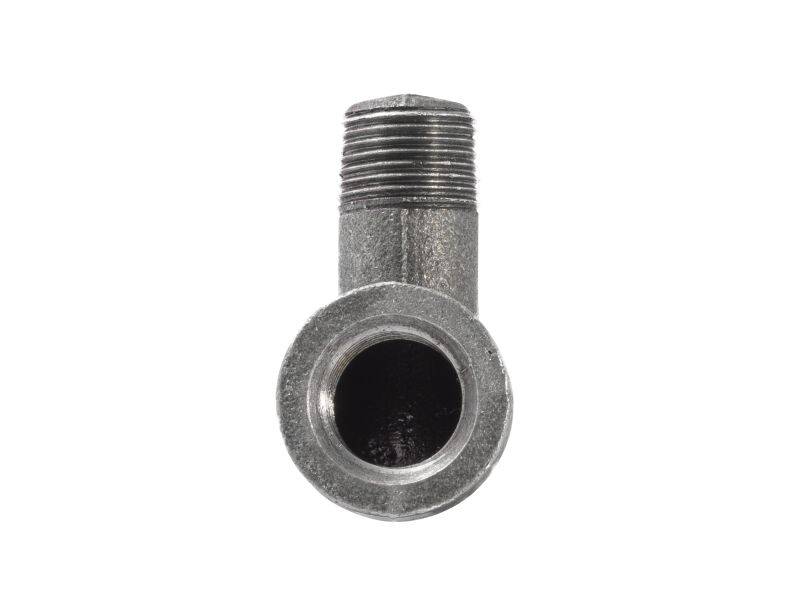

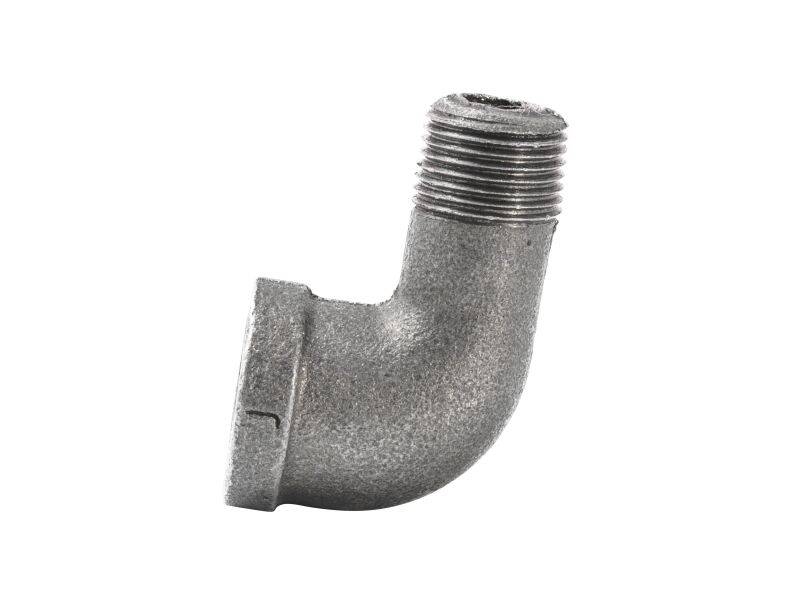

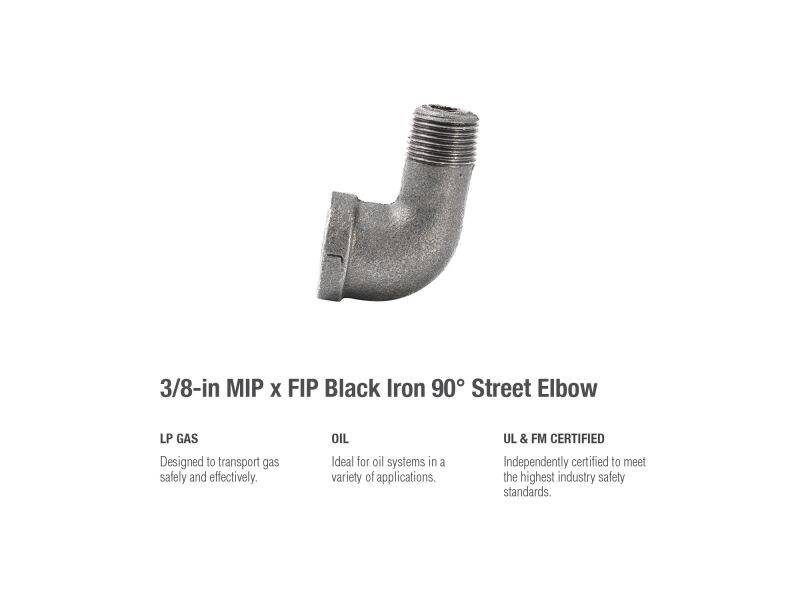

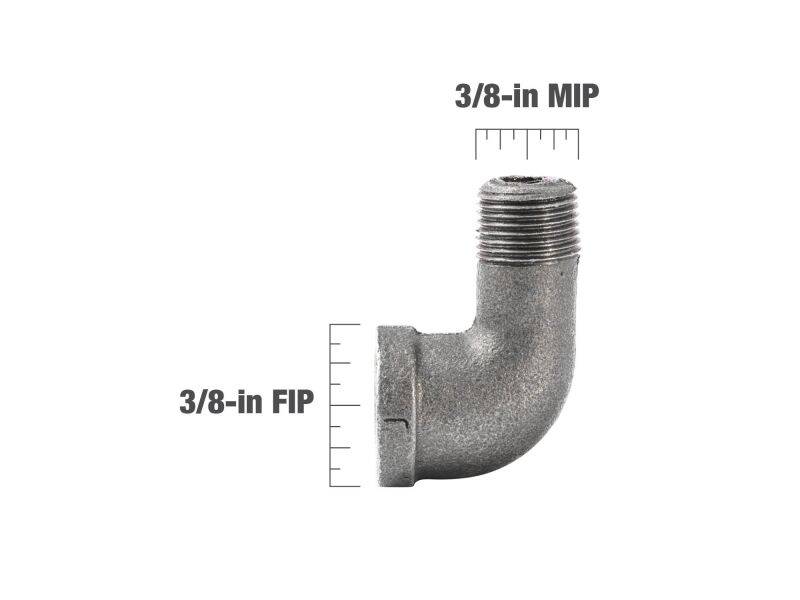

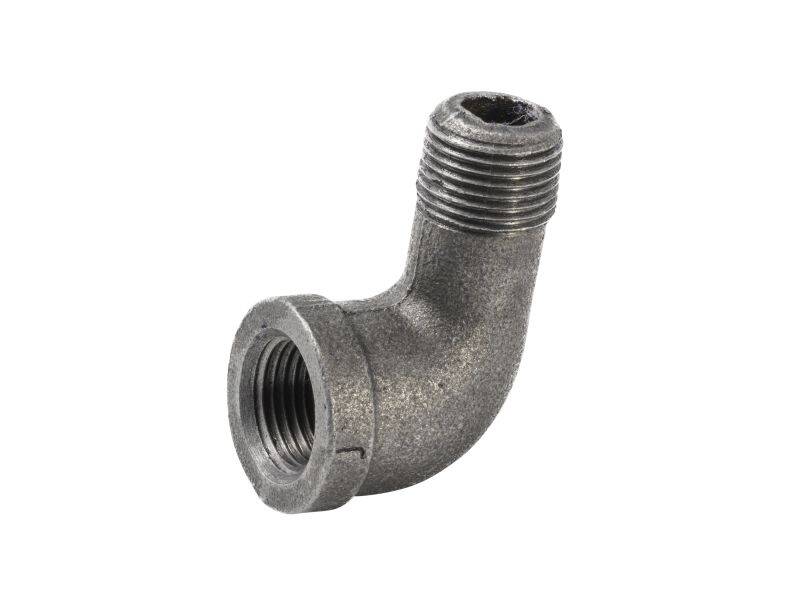

3/8 in. FIP x 3/8 in. MIP Black Pipe Street Elbow Fitting, 90° - Threaded, 1-Pack
- Mfg.#
- 520-302HN
- Sku#
- 2617629
- Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
- 150-lb class malleable fittings
- Relative softness of metal helps provide a sure seal
- This fitting works up to 500 PSI at 150°F
- Threaded ends comply with ANSI/ASME B1.20.1 standards
* Estimated stock levels as of Sat, May 2, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
This 3/8 in. FIP x 3/8 in. MIP Black Pipe Street Elbow Fitting from Southland is a 90° threaded connector designed for tight directional changes in piping runs, ideal when you need a compact, reliable elbow for fuel and fluid systems. Built as a 150-lb class malleable fitting, its relatively soft metal helps provide a sure seal while meeting ASTM and ASME standards; threaded ends comply with ANSI/ASME B1.20.1 for dependable compatibility. It’s rated to work up to 500 PSI at 150°F, making it suitable for lubricant, oil, grease, liquefied petroleum (LP) gas, various natural gases, steam and diesel applications. At roughly 1.97 inches long, 1.3 inches wide and 1.02 inches high, this street elbow fits where space is limited and a sturdy threaded connection is required.
Specifications
General
| Elbow Angle | 90° |
|---|---|
| Fitting Material | Malleable Iron |
| Fitting Nominal Size | 3/8" x 3/8" |
| Inlet Size (Elbows) | 3/8 in. |
| Inlet Type (Elbows) | FIP |
| Outlet Size (Elbows) | 3/8 in. |
| Outlet Type (Elbows) | MIP |
| PSI | 232 to 300 |
| Pack Qty | 1 |
| Temperature Rating | Min: -20° F; Working: 77° F; Max: 347° F |
| Thread Type | Threaded |
| Type | Black Pipe Street Elbow Fitting |
Dimensions
| Height | 1.02 in |
|---|---|
| Length | 1.97 in |
| Weight | 0.149 lb |
| Width | 1.3 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1 yr Limited |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead & Lead Compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | HHXX,FM1140 |
|---|
