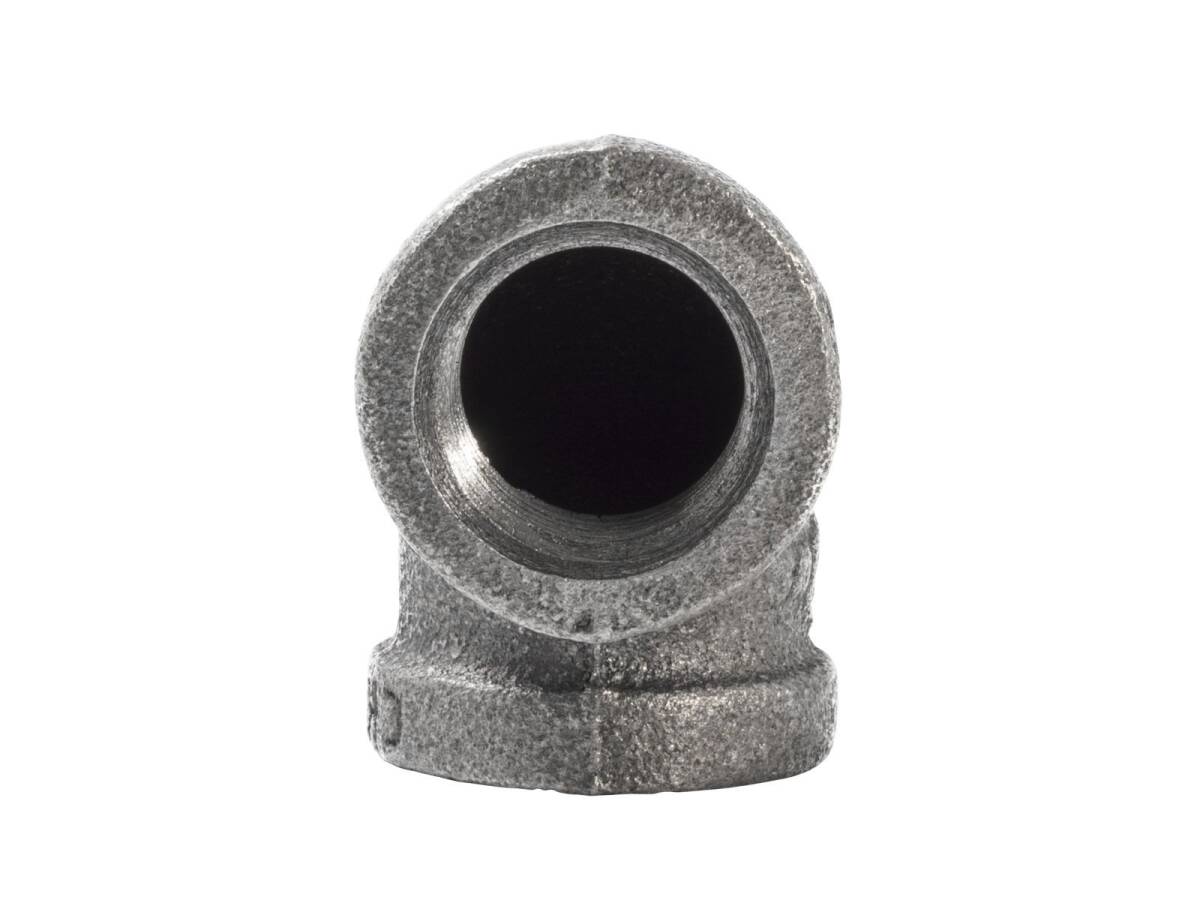

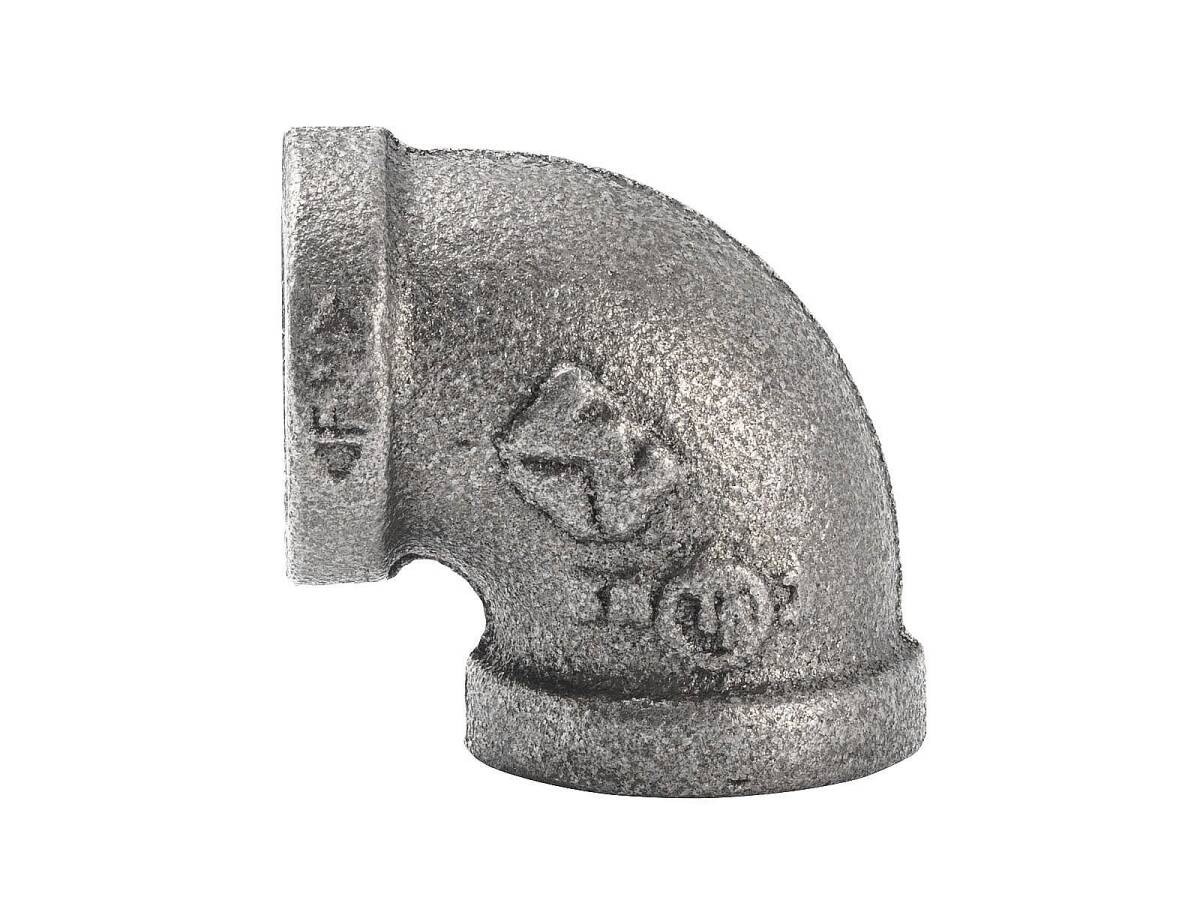

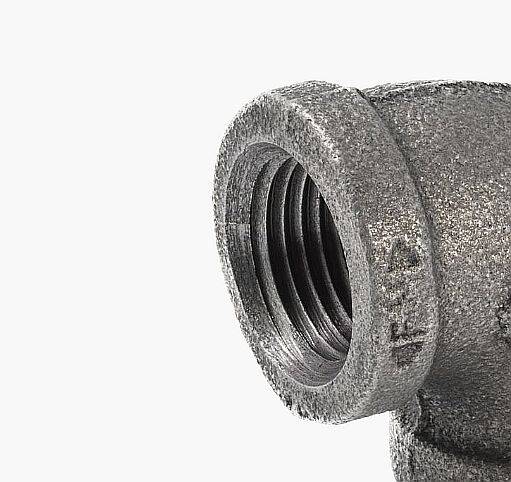

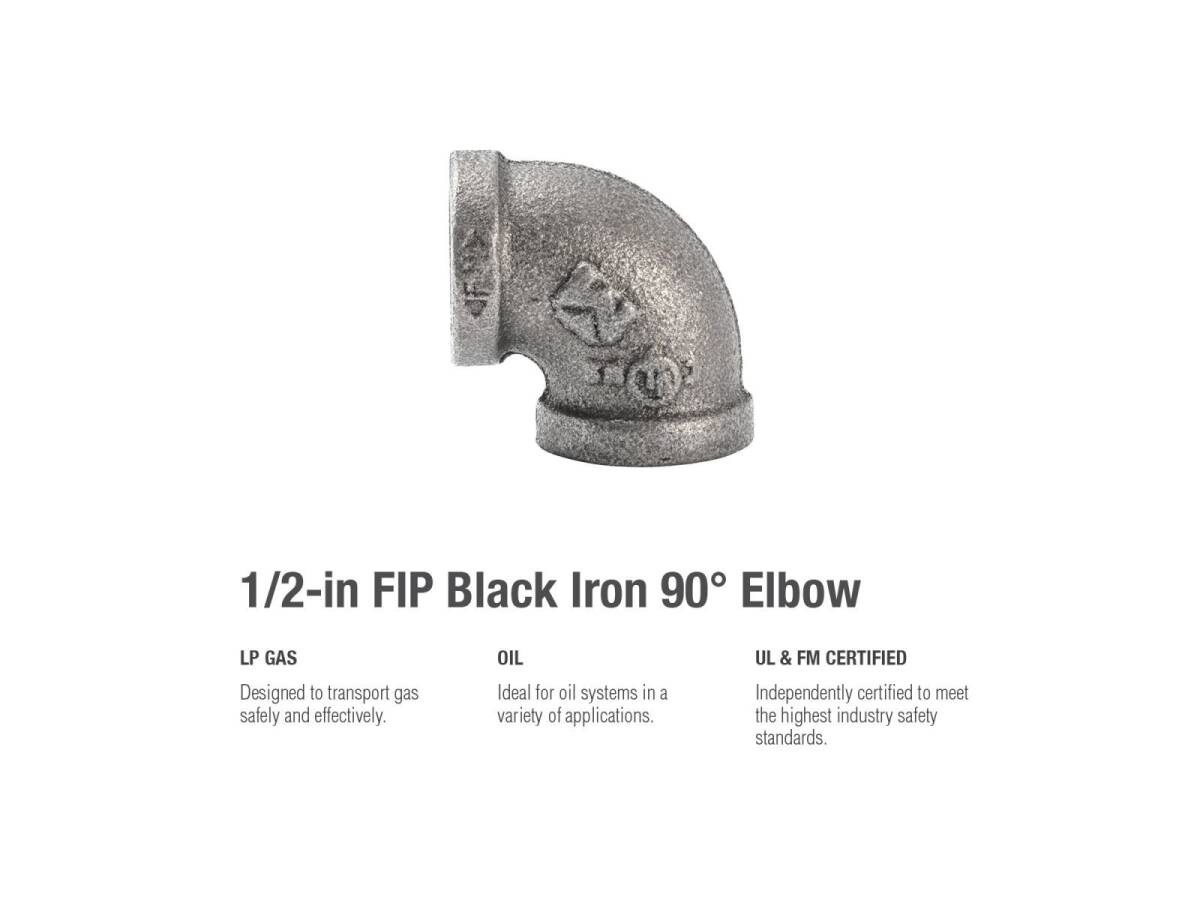

1/2 in. FIP x 1/2 in. FIP Black Pipe Elbow Fitting, 90° - Threaded, 1-Pack
- Mfg.#
- 520-003HN
- Sku#
- 2617454
- Generally used for lubricant, oil, grease, liquefied petroleum (LP) gas, natural gases (nitrogen, oxygen, etc.), steam and diesel
- 150-lb class malleable fittings
- Relative softness of metal helps provide a sure seal
- This fitting works up to 500 PSI at 150°F
- Threaded ends comply with ANSI/ASME B1.20.1 standards
* Estimated stock levels as of Sun, Mar 15, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The 90° Elbow allows you to redirect your piping system in a needed direction. General uses for this product are for transporting lubricant, oil, grease, LP gases & fuel or to create your own DIY projects. This fitting is not designed for potable water applications.
Specifications
General
| Elbow Angle | 90° |
|---|---|
| Fitting Material | Malleable Iron |

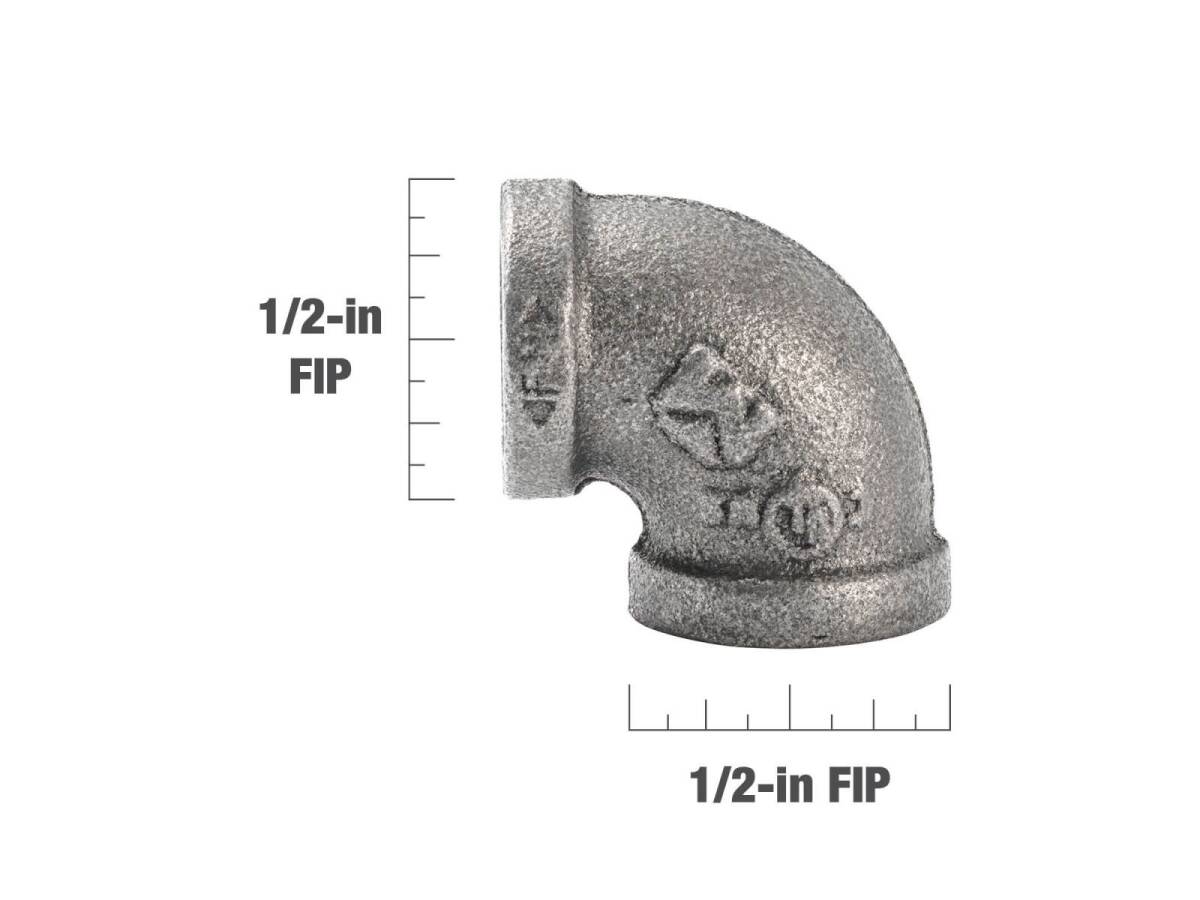

| Fitting Nominal Size | 1/2" x 1/2" |
| Inlet Size (Elbows) | 1/2 in. |
| Inlet Type (Elbows) | FIP |
| Outlet Size (Elbows) | 1/2 in. |
| Outlet Type (Elbows) | FIP |
| PSI | 232 to 300 |
| Pack Qty | 1 |
| Temperature Rating | Min: -20° F; Working: 77° F; Max: 347° F |
| Thread Type | Threaded |
| Type | Black Pipe Elbow Fitting |
Dimensions
| Height | 1.22 in |
|---|---|
| Length | 1.69 in |
| Weight | 0.2235 lb |
| Width | 1.69 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1 yr Limited |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead & Lead Compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | HHXX,FM1920 |
|---|
PLEASE NOTE: Product information for this item was provided by a third-party source and has not been verified. Please use our feedback button to report any errors. Read our Terms of Use.
