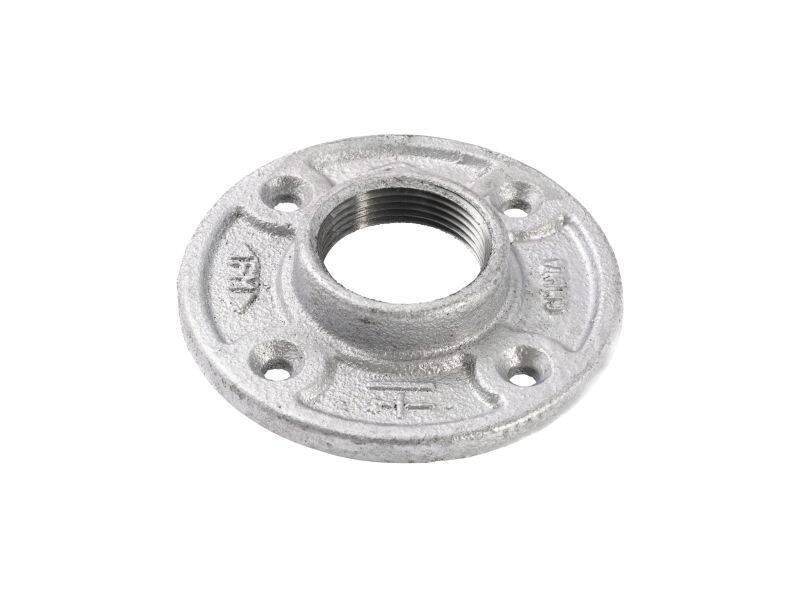

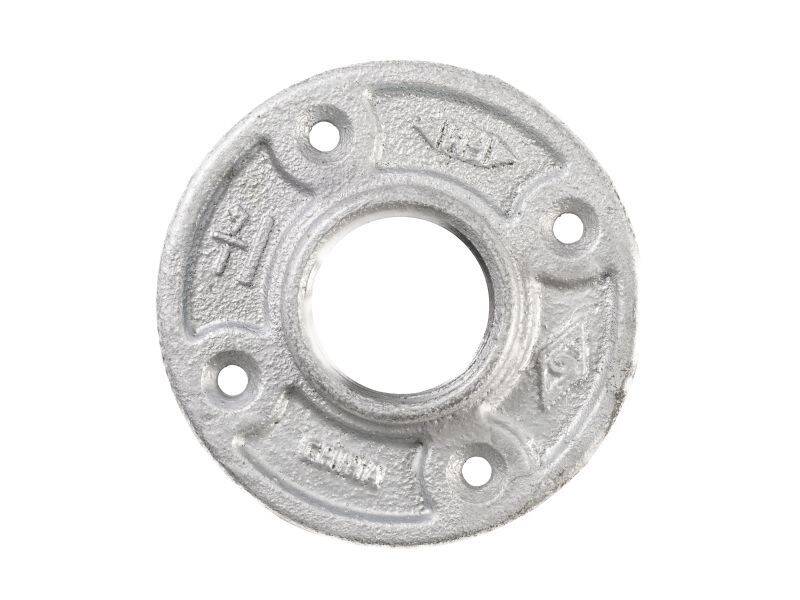

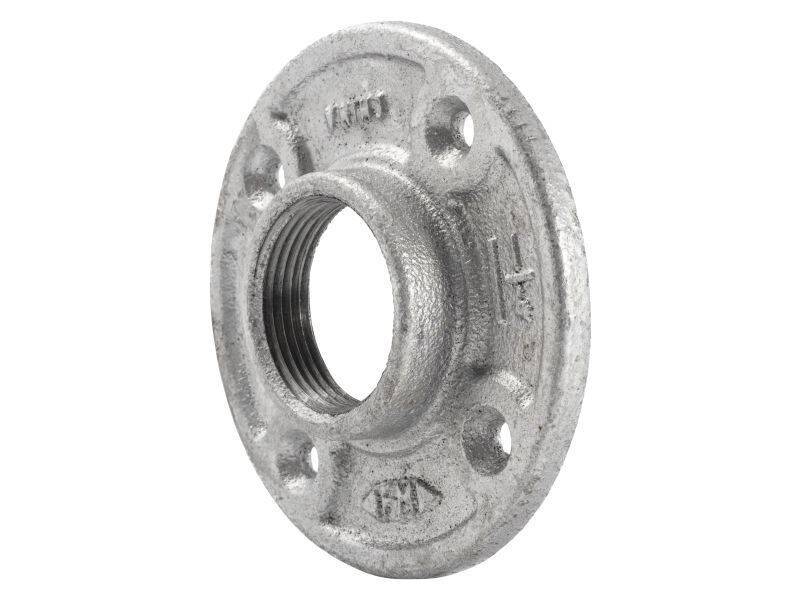

Malleable Iron Pipe Floor Flange — 1-1/4 in., Zinc-Coated Galvanized
- Mfg.#
- 511-606HN
- Sku#
- 2614899

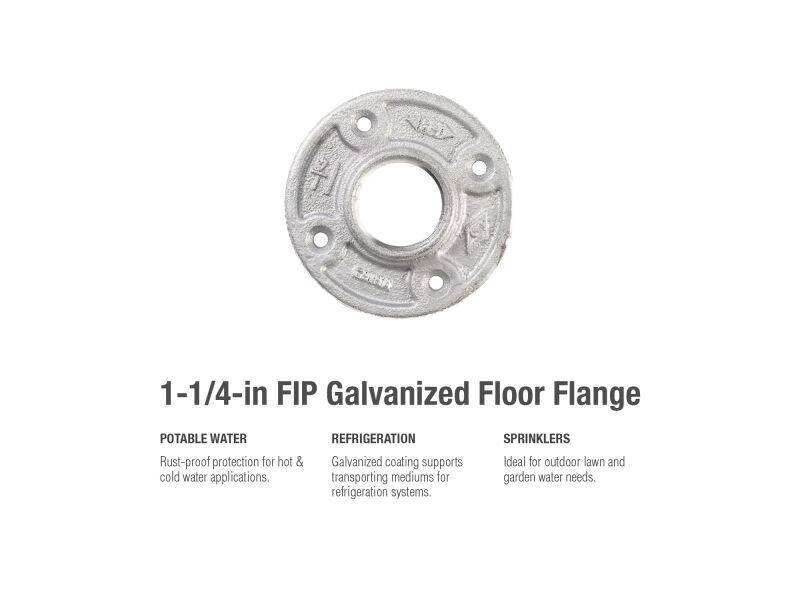

- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150-lb class malleable fittings
- This fitting works up to 500 PSI at 150°F
- Relative softness of metal helps provide a sure seal
* Estimated stock levels as of Sun, May 3, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The Southland Malleable Iron FIP Galvanized Pipe Floor Flange, 1-1/4", is a durable mounting flange designed to provide a rust-resistant connection point where pipe meets floor or surface. Contractors and DIYers choose it for its galvanized malleable iron construction and zinc coating that protect internal surfaces in systems carrying hot and cold water, refrigeration lines, sprinklers, compressed air, and various fuels like gasoline, diesel and alcohol. Rated 150-lb class and tested to work up to 500 PSI at 150°F, this flange pairs reliable pressure performance with the relative softness of malleable iron to help form a sure seal. Threaded ends meet ANSI/ASME B1.20.1 standards for compatible fittings, and its compact profile—approximately 0.75 inch tall and 4.21 inches long—fits neatly into tight installation spaces.
Specifications
General
| Application | Potable Water |
|---|---|
| Finish | Galvanized |
| Fitting Material | Malleable Iron |

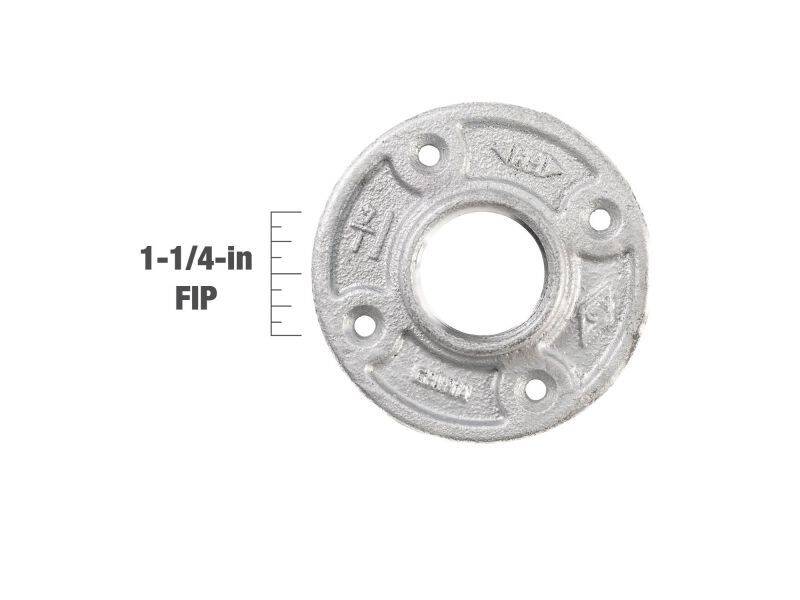

| Fitting Nominal Size | 1-1/4" |
| Inlet Connection Size | 1-1/4 in |
| Inlet Connection Type | FIP |
| Temperature Rating | Min: -20° F; Working: 77° F; Max: 347° F |
| Type | Galvanized Pipe Floor Flange |
Dimensions
| Height | 0.75 in |
|---|---|
| Length | 4.21 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | China |
|---|---|
| Manufacturer Warranty | 1 yr Limited |
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Lead and Chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | NSF/ANSI 61,FM1920,NSF/ANSI 372,AB 1953 |
|---|
