3/4 in. FIP x 1/2 in. FIP Galvanized Malleable Iron Reducing Elbow Fitting, 90° - Rust Resistant, 1-Pack
- Mfg.#
- 510-143HN
- Sku#
- 2613438
- Used for hot and cold water systems, refrigeration, sprinklers, compressed air, gasoline, diesel, alcohol, and some other applications where conducted fluid needs inner rust-proof protection
- Galvanized malleable iron construction with zinc coating
- 150-lb class malleable fittings
- This fitting works up to 500 PSI at 150°F
- Relative softness of metal helps provide a sure seal
* Estimated stock levels as of Thu, Apr 2, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

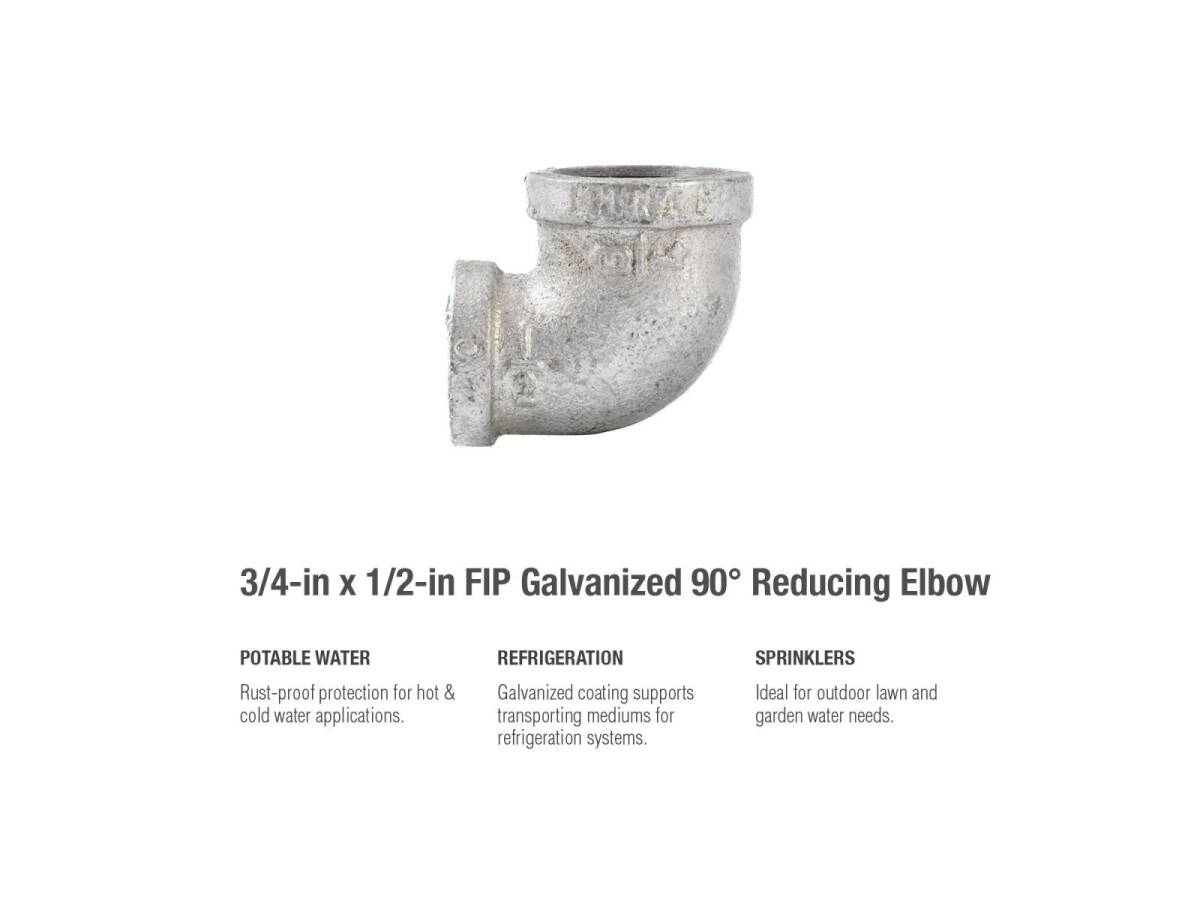

The 90° Reducing Elbow allows you to connect two male-ended pipes of differing diameters. This fitting’s galvanization provides a layer of rust-protectant, helping to ensure a long and durable product life. General uses for this product are for transporting potable water, compressed air, drainage or creating your DIY projects.
Specifications
General
| Elbow Angle | 90° |
|---|---|
| Elbow Feature | Rust Resistant |
| Fitting Material | Malleable Iron |

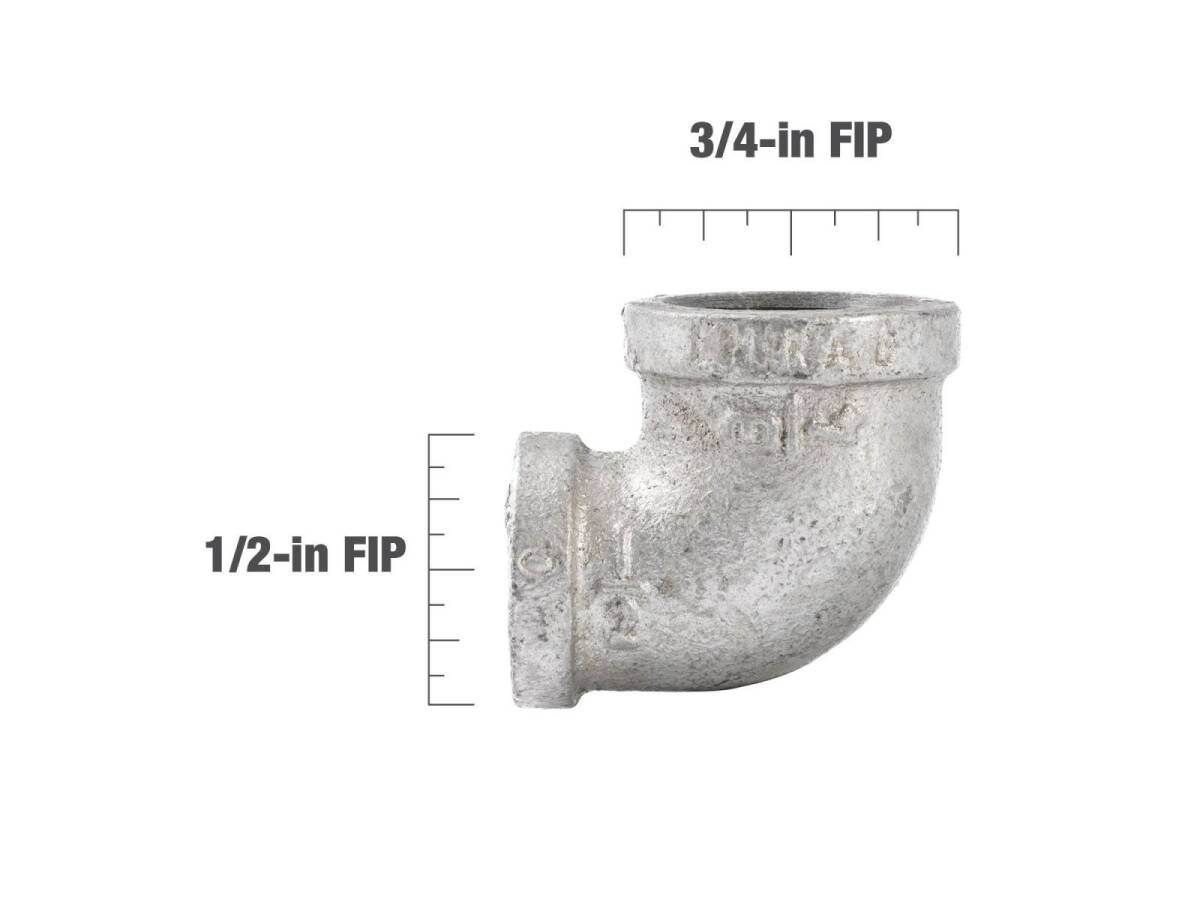

| Fitting Nominal Size | 3/4" x 1/2" |
| Inlet Size (Elbows) | 3/4 in. |
| Inlet Type (Elbows) | FIP |
| Max Pressure (PSI) | 300 |
| Max Temperature Rating | 347° F |
| Min Temperature Rating | -20° F |
| Outlet Size (Elbows) | 1/2 in. |
| Outlet Type (Elbows) | FIP |
| Pack Qty | 1 |
| Potable Water Safe | Yes |
| Thread Type | Threaded |
| Type | Galvanized Malleable Iron Reducing Elbow Fitting |
| Working Pressure (PSI) | 232 |
| Working Temperature Rating | 77° F |
Dimensions
| Height | 1.50 in |
|---|---|
| Length | 1.97 in |
| Weight | 0.3050 lb |
| Width | 1.81 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1 yr Limited |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | NSF/ANSI 61,HHXX,FM1920,NSF/ANSI 372,AB 1953 |
|---|
