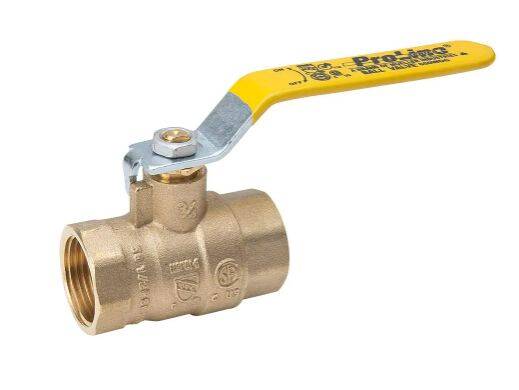

ProLine 1-1/4-Inch FIP Brass Full Port Ball Valve
- Mfg.#
- 107-816HN
- Sku#
- 2612729
- 600 PSI WOG/150 WSP
- -40°F to 194°F temperature range
- Full port for maximum flow rate
- Packing Gland - blowout-proof stem design
- PTFE Discs and Seats
* Estimated stock levels as of Wed, Apr 1, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
ProLine™ 1-1/4-Inch FIP Full Port Ball Valve- ProLine Ball Valves are precisely engineered for outsanding service, long life and reliable performance. These valves offer easy operation, superior flow and inlclude a wide range of water/oil/ gas (WOG) valves, gas valves and water valves constructed from forged brass, CPVC and PVC materials. ProLine Valves meet UPC and ICC plumbing code requirements and are certified to meet NSF 61.
Specifications
General
| Application | To allow full flow when valve is open |
|---|---|
| Color | Brass |
| Color Family | Gold |
| Connection | FIP x FIP |
| Connection Size | 1-1/4 in X 1-1/4 in |
| Connection Type | FIP |
| Connection Type 2 | FIP |
| End Connection | Threaded |
| Finish | Chrome Plated |
| Handle Color | Yellow |
| Handle Material | Rust-resistant heavy-duty |
| Handle Type | Lever |
| Indoor/Outdoor | Indoor/Outdoor |
| Material | Brass |
| PSI (Maximum) | 600 |
| Pack Qty | 1 |
| Port Type | Full |
| Pressure Rating | 600 psi |
| Series | 7690T |
| Suitable for | Copper, Steel Connections |
| Temperature Rating | -40 to 194-Degree F |
| Type | Full Port Ball Valve |
| Usage | Water, air, steam, oil and gas applications |
| Valve Type | Ball |
Dimensions
| Diameter | 1-1/4 in |
|---|---|
| Outside Diameter | 1-1/4 in |
| Size | 1-1/4 in |
| Weight | 1.42 lb |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | Italy |
|---|---|
| Manufacturer Warranty | 1 Year Limited |
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | CSA Certified to 1/2 psig; CSA Certified to ASME B16.33 (5G); CSA Certified to ASME B16.44 (125G); Threaded ends comply with ANSI B1.20.1; IAMPO IGC 157 certified; IAPMO Listed to cUPC; Certified to NSF 61 |
|---|
Related Documents
Brochure (PDF)
Installation Guide (PDF)
