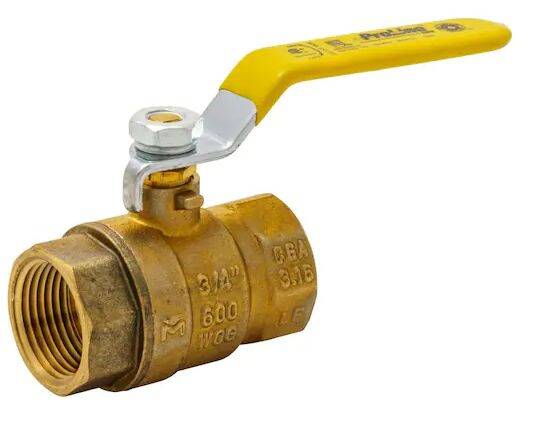

ProLine 3/4-Inch FIP Brass Full Port Ball Valve
- Mfg.#
- 107-814HN
- Sku#
- 2612695
- 600PSI/125 WSP
- -40°F to 194°F temperature range
- Full port for maximum flow rate
- Packing Gland - blowout-proof stem design
- PTFE Discs and Seats
* Estimated stock levels as of Fri, Apr 10, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
ProLine™ 3/4-Inch FIP Full Port Ball Valve -ProLine Ball Valves are precisely engineered for outsanding service, long life and reliable performance. These valves offer easy operation, superior flow and inlclude a wide range of water/oil/ gas (WOG) valves, gas valves and water valves constructed from forged brass, CPVC and PVC materials. ProLine Valves meet UPC and ICC plumbing code requirements and are certified to meet NSF 61.
Specifications
General
| Application | On/Off Flow Control Applications- Natural Gas, Non-Potable Water, Oil, Potable Water |
|---|---|
| Body Material | Brass |
| Color | Brass |
| Connection | FIP x FIP |

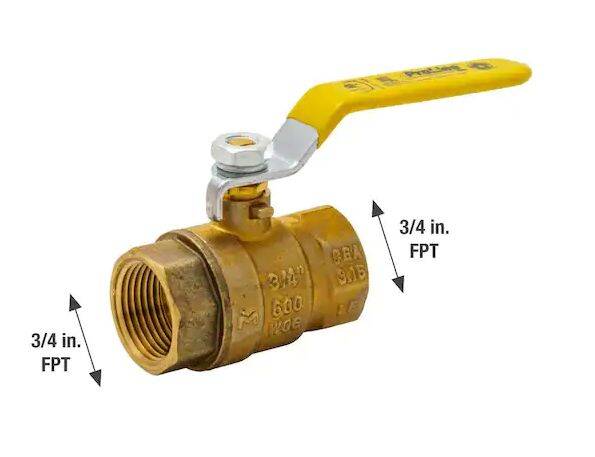

| Connection Size | 3/4 x 3/4 in |
| Connection Type | FIP |
| Connection Type 2 | FIP |
| End Connection | Threaded |
| Finish | Chrome Plated |
| Handle Material | Rust-resistant heavy-duty |
| Handle Type | Lever |
| Indoor/Outdoor | Indoor/Outdoor |
| Inlet Connection Size | 3/4 in |
| Material | Brass |
| PSI (Maximum) | 600 |
| Pack Qty | 1 |
| Port Type | Full |
| Pressure Rating | 600 psi |
| Series | 7690T |
| Suitable for | Copper, Steel Connections |
| Temperature Rating | -40°F to 194°F |
| Type | Full Port Ball Valve |
| Usage | Oil, Water |
| Valve Type | Ball |
Dimensions
| Depth | 5.3 in |
|---|---|
| Diameter | 3/4 in |
| Dimensions | 5.3 X 1.39 X 2.76 in |
| Height | 2.76 in |
| Length | 5.3 in |
| Outside Diameter | 3/4 in |
| Size | 3/4 in |
| Weight | .55 lb |
| Width | 1.39 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | Italy |
|---|---|
| Manufacturer Warranty | 1 Year Limited |
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | ANSI/ASME B1.20.1 threaded end connections |
|---|
Related Documents
Brochure (PDF)
Installation Guide (PDF)
