- Some stock photographs may show options that are not included. Please check product description.

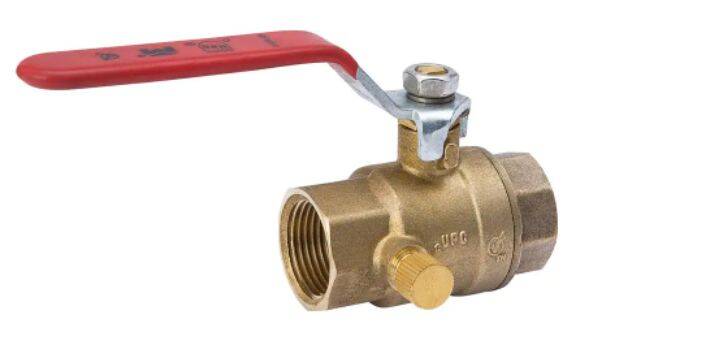

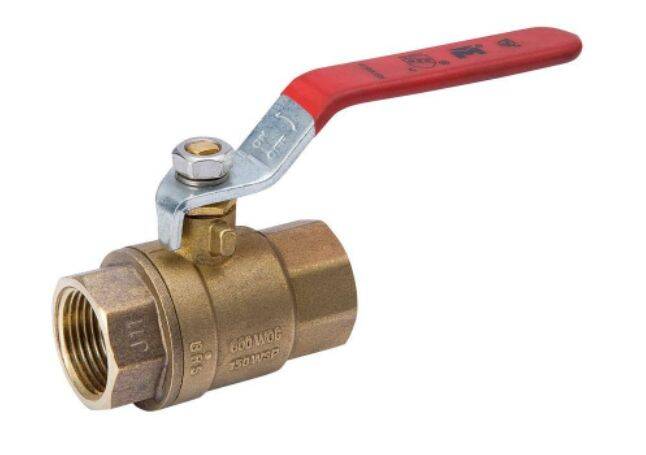

ProLine Series 3/4-Inch Copper X Copper Brass Full Port Threaded Stop and Waste Ball Valve
- Mfg.#
- 107-754HN
- Sku#
- 2612554
- Full port for maximum flow rate
- Packing Gland - blowout-proof stem design
- PTFE seat and packing
- Chrome-plated brass ball & stem
- Rust-resitant heavy-duty handle with vinyl grip
* Estimated stock levels as of Fri, Apr 10, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
ProLine Series™ 3/4-Inch Copper X Copper Brass Full Port Threaded Stop and Waste Ball Valve has a side drain function combined with full port operation. The port allows the non-pressure side to drain when closed. It has a Packing Gland with blowout-proof stem design, a chrome-plated brass ball & stem, and a rust-resitant heavy-duty handle with a vinyl grip.
Specifications
General
| Application | Shuts off flow and prevents water from freezing in sprinkler lines |
|---|---|
| Color | Brass |
| Color Family | Gold |
| Connection | FIP X FIP |
| Connection Size | 3/4 in |
| Connection Type | FIP |
| Connection Type 2 | FIP |
| End Connection | Threaded |
| Finish | Chrome Plated |
| For Use With | Gas, Oil, Water |
| Handle Color | Red |
| Handle Material | Stainless Steel with Vinyl Grip |
| Handle Type | Lever |
| Indoor/Outdoor | Indoor/Outdoor |
| Material | Brass |
| PSI (Maximum) | 600 |
| Pack Qty | 1 |
| Port Type | Full |
| Pressure Rating | 600 psi |
| Series | 7700TD |
| Suitable for | Water, oil, gas or steam in commercial and residential systems |
| Temperature Rating | -20-Degree to 300-Degree F |
| Type | Stop & Waste Valve |
| Usage | Sprinkler system |
| Valve Type | Stop and Waste |
Dimensions
| Diameter | 3/4 in |
|---|---|
| Height | 1.88 in |
| Length | 5 in |
| Size | 3/4 in |
| Weight | 0.65 lb |
| Width | 2-3/4 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | China |
|---|---|
| Manufacturer Warranty | 1 Year Limited |
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | NSF/ANSI 61-G Compliant |
|---|
Related Documents
Brochure (PDF)
Installation Guide (PDF)
