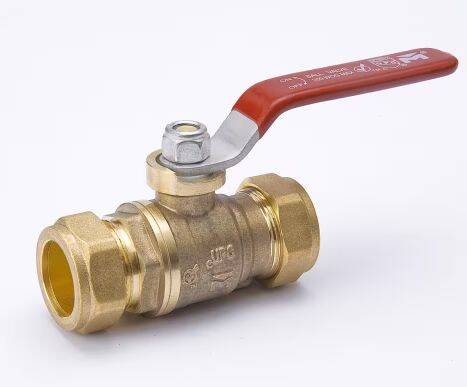

ProLine Series 1/2-Inch Brass Compression Ball Valve
- Mfg.#
- 107-023NL
- Sku#
- 2611929
- Suitable for vacuum use up to 7 PSI
- No-Lead product
- Manufactured in an ISO 9001 facility
- Forged brass construction
* Estimated stock levels as of Wed, Apr 1, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
ProLine Series™ 1/2-Inch Compression Ball Valve
B & K™ ProLine™ Ball Valvesare precisely engineered for outsandingservice, long life and reliable performance. These valves offer easyoperation, superior flow and inlclude a wide range of water/oil/gas (WOG) valves, gas valves and water valves constructed fromforged brass. B&K™valves are created to meet UPC and ICC plumbing code requirementsand are certified to meet NSF 61 with many available in lead-freecompliant versions.
Specifications
General
| Application | Allows for solderless connection to copper tubing |
|---|---|
| Body Material | Brass |
| Color | Brass |
| Color Family | Gold |
| Connection | Comp X Comp |
| Connection Size | 1/2 in |
| Connection Type | Comp. |
| Connection Type 2 | Comp. |
| End Connection | Compression |
| For Use With | Copper tubing |
| Handle Material | Dacromet coated steel |
| Handle Type | Lever |
| Indoor/Outdoor | Outdoor |
| Material | Brass |
| PSI (Maximum) | 200 |
| Pack Qty | 1 |
| Pressure Rating | 200 psi |
| Series | 7700CMP |
| Suitable for | Water, Oil, Gas |
| Temperature Rating | -20 to 350-Degree F |
| Trim Material | Brass Stem and PTFE Seat |
| Type | Ball Valve |
Dimensions
| Diameter | 1/2 in |
|---|---|
| Height | 2.42 in |
| Length | 5 in |
| Outside Diameter | 1/2 in |
| Size | 1/2 in |
| Weight | 1/2 lb |
| Width | 1.22 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | China |
|---|---|
| Manufacturer Warranty | 1 Year Limited |
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | Meets UPC and ICC plumbing code requirements; certified to meet NSF 6; ANSI 65-G |
|---|
Related Documents
Brochure (PDF)
Installation Guide (PDF)
