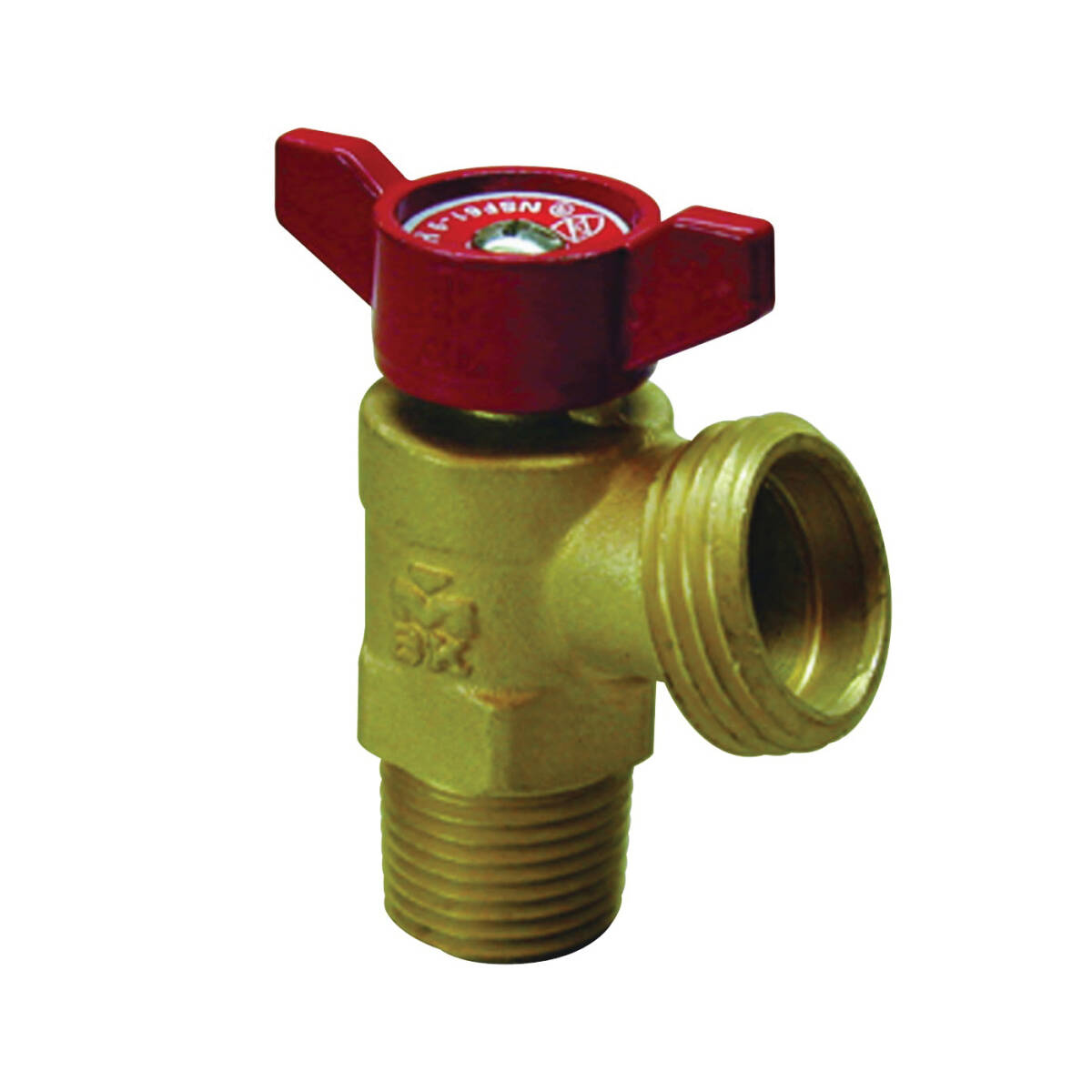

Boiler Drain Valve, 3/4 In Connection, Mpt X Fip, 125 PSI Pressure, Chrome
- Mfg.#
- 102-054HN
- Sku#
- 2611143
* Estimated stock levels as of Fri, May 1, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Easy quarter turn on/off operation regulates water flow from a trickle to wide open. Compact, low-lead compliant, operates easily for long life. Large flow rate for use as any general-purpose hose connection outlet for external water service. 60% copper alloy brass construction with chrome-plated brass ball, Teflon seats and rust-resistant handle. 125 psi max working pressure. 3/4 in hose thread outlet. IAPMO NSI/NSF 61 approved. Pipe threads comply with ANSI B1.20.1, hose threads comply with ANSI B1.20.7, solder (sweat) ends comply with ANSI-B16.18. Bin box display packaging. Each valve has a data tag with installation instructions and is bar-coded for easy identification. Carton.
Specifications
General
| Actuator Type | Quarter-Turn |
|---|---|
| Body Material | Brass |
| Connection Size | 3/4 in |
| Connection Type | MPT x FIP |
| Finish | Chrome |
| Pressure Rating | 125 psi |
| Series | Quarter Master ProLine |
| Temperature Rating | -20 to 180 -degree F |
| Trim Material | Iron |
| Type | Boiler Drain Valve |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | CN |
|---|
Dimensions
| Size | 3/4 in |
|---|
Label Information
| Certification, Codes, Standards | ASME A112.18.1 Certified | CSA Certified | ICC Approved | NSF-61 Certified | UPC Certified |
|---|
