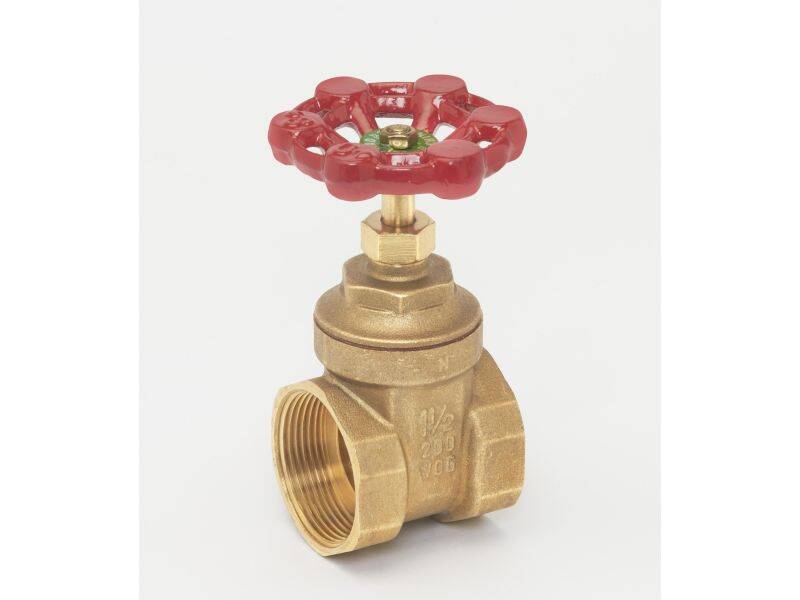

2-Inch Brass Compact Pattern Gate Valve
- Mfg.#
- 100-408HC
- Sku#
- 2611051
- 200 PSI WOG / 125 PSI WSP
- Standard port
- Non-rising stem for limited-space operation
- Six point cast-iron handle
- Forged brass construction for quality and dependability
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Conscious of the pro's need for valves in tight spaces, ProLine Series offers the Compact Gate Valve. Designed to provide the standard quality of flow control in a smaller body and the non-rising stem, this valve is the choice option for limited space indoor residential, commercial plumbing and outdoor applications.
Specifications
General
| Connection Type 1 | FIP |
|---|---|
| Connection Type 2 | FIP |
| Inlet Connection Size | 2 in Dia |
| Material | Brass |
| Outlet Size | 2 in |
| PSI | 170 |
| Series | ProLine |
| Temperature Rating | Min: 33° F; Working: 72° F; Max: 160° F |
| Type | Gate Valve |
Dimensions
| Height | 6.38 in |
|---|---|
| Length | 2.62 in |
| Weight | 2.6189 lb |
| Width | 3.86 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 1 yr Limited |
|---|---|
| Prop 65 Warning |
This product can expose you to chemicals including Lead & Lead Compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | MSS SP-80,NSF/ANSI 61 |
|---|
