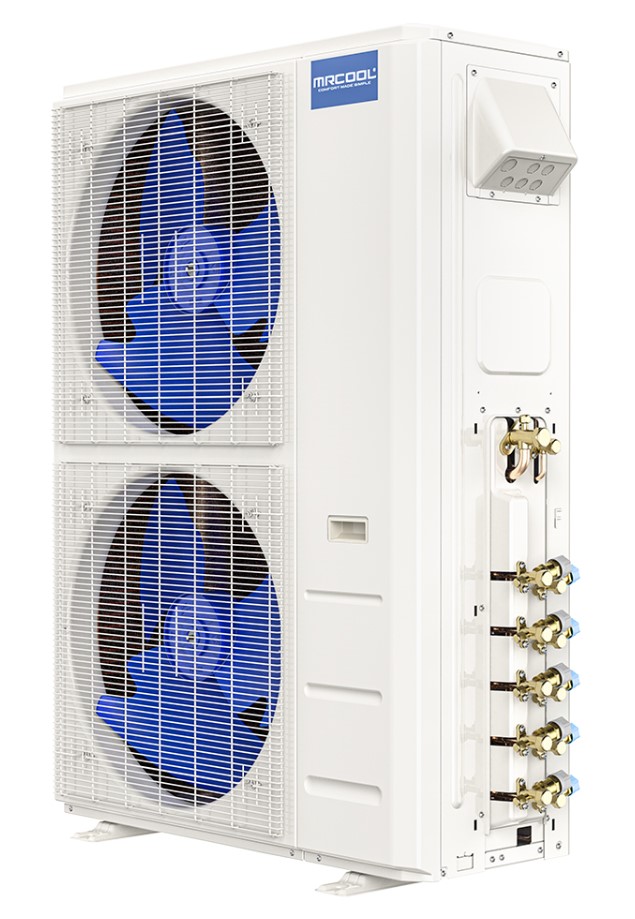

DIY 4th Generation Multi-Zone 5-Zone Condenser
- Mfg.#
- DIY-MULTI5-48HP230C
- Sku#
- 2520476
- Up To 21.5 SEER
- Gold Fin® Condenser: Corrosion-Resistant Coastal Living
- Energy Efficient DC Inverter
- R-410A Environmentally Friendly Refrigerant
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Introducing the latest in home comfort solutions with the new 4th Generation MRCOOL® DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.
Specifications
General
| Amps | Max Fuse Breaker: 40A Min Circuit Capacity: 40A |
|---|---|
| BTU | 48,000 |
| CFM | 4500 |
| Color | White |
| Compressor Type | Rotary |
| Cooling Capacity | 48,000 BTU |
| Decibel Rating (dB) | 61.5 dBA |
| HSPF | hspf4/hspf5 : 11/8.5 |
| Heating Capacity | 48,000 BTU |
| Hertz | 60 |
| Liquid Line Diameter | 1/4in (3/8in w/ adapter) |
| Refrigerant | R-410A |
| SEER | 20.5 |
| Suction Line Diameter | 1/2in (5/8in w/ adapter) |
| Type | Condenser |
| Volts | 208-230 |
Manufacturing Details
The following information is subject to change without notice
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
|---|
Label Information
| Certification, Codes, Standards | Energy Star, UL Listed, AHRI Certified |
|---|
