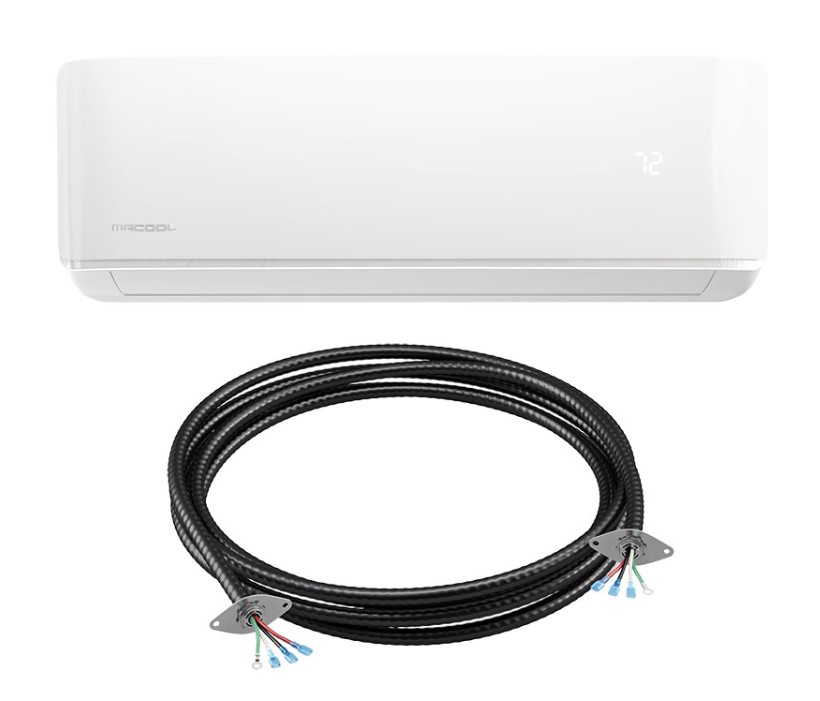

DIY 4th Generation 24K Btu Heat Pump Wall Mount Air Handler With 25-Foot Cable
- Mfg.#
- DIY-24-HP-WMAH-230C25
- Sku#
- 2519932
- Up To 20.5 SEER2
- Gold Fin® Condenser: Corrosion-Resistant Coastal Living
- Variable Speed DC Inverter Compressor Technology Cuts Operating Costs
- R-410A Environmentally Friendly Refrigerant
* Estimated stock levels as of Mon, Jun 1, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The MRCOOL® 4th Generation DIY 24K BTU, 20.5 SEER Ductless Heat Pump is an all in one system that seamlessly combines efficiency, durability, and simplicity. This system can offer a 20.5 SEER efficiency rating that has allowed it to achieve an Energy Star certification and can heat & cool an area up to 1,000 sq. ft. It also features durable construction and a corrosion-resistant Gold Fin condenser. All of this is contained within a Do-It-Yourself system that can be installed by a homeowner in a few hours using simple tools. This simplicity is achieved with the use of the patented MrCool Pre-Charged Quick-Connect Line Set included with the system. Not only is this system capable of delivering exceptional performance, it is also equipped with up to six operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification), and SLEEP. The system’s Follow Me Feature allows the system to adjust the room temperature based on wherever you’re standing with the hand-held remote control. This system also has the ability to be controlled with a smartphone by way of the Smart HVAC app. Backed by a limited lifetime compressor warranty, this system is sure to meet your comfort needs and peace of mind.
Specifications
General
| Amps | Max Fuse Breaker: 35A Min Circuit Capacity: 22A |
|---|---|
| BTU | 24,000 |
| Color | White |
| Compressor Type | Twin-Rotary |
| Cooling Capacity | 23,000 BTU |
| Cord Length | 25 Ft |
| Coverage | Up To 1,000 Sq Ft |
| Decibel Rating (dB) | 48.5 dBA |
| Heating Capacity | 25,000 BTU |
| Hertz | 60 |
| Liquid Line Diameter | 3/8 in |
| Mounting | Wall Mount |
| Power Type | Hardwired |
| Refrigerant | R-410A |
| Remote Control | Yes |
| SEER | 20.5 |
| Suction Line Diameter | 5/8 in |
| Suitable for Use With | Alexa, Alexa, Google, Google Assistant |
| Type | Mini-Split Ductless Air Conditioner |
| Volts | 208-230 |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty |
|---|---|
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | Energy Star, UL Listed, AHRI Certified |
|---|
