MILBANK

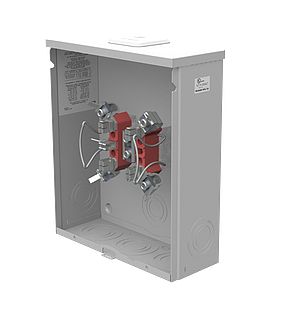

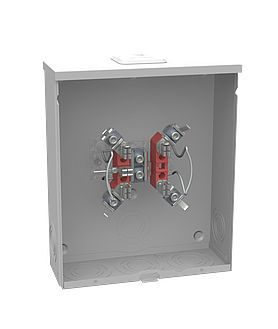

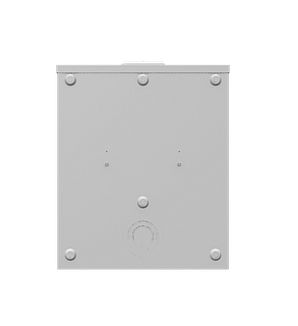

200-Amp 5-Terminal Ringless Meter Socket
- Mfg.#
- U7043-XL-TG-KK-IL-5T9W
- Sku#
- 2447654
* Estimated stock levels as of Thu, Apr 2, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
200-Amp 5-Terminal Ringless Meter Socket
Specifications
General
| Amps | 200 |
|---|---|
| Application | Meter Socket |
| Bypass Type | Horn Bypass |
| Cable Entry | Overhead or Underground |
| Cutout Size | No Main Breaker |
| Enclosure Material | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Grounding Type | Equipment Ground: Triplex Ground |
| Insulation | Glass Polyester |
| Load Centers & Distribution Type | Meter Socket |
| Misc | Number of Cutouts: 0, Hub Opening: Small Closing Plate, Line Side Wire Range: 6 AWG - 350 kcmil, Load Side Wire Range: 6 AWG - 350 kcmil, Barrel Lock Provision: 7/16 in Knockout |
| Mounting Type | Surface Mount |
| Number of Positions | Meter: 1 position |
| Number of Receptacles | 0 |
| Number of Terminals | 5 |
| Phase | 1 |
| Terminal | Lay in |
| Type | Meter Socket |
| Volts | 600 V Alternating Current |
Dimensions
| Height | 15.5 in |
|---|---|
| Length | 4.84 in |
| Width | 13 in |
Label Information
| Certification, Codes, Standards | UL Listed, Type 3R |
|---|
Related Documents
Install Sheet (PDF)
