- Some stock photographs may show options that are not included. Please check product description.
4-Inch 12-Watt 120-Volt White Downlight With Remote Driver
- Mfg.#
- HLB4069FS1EMWR-6P
- Sku#
- 2405371
- Direct mount (does not require recessed housing or junction box)
- Delivers up to 750 lumens; Achieves L70 at 50,000 hours in IC and non-IC applications
- 90 CRI (min), R9 50 and color accuracy within 4 SDCM
- Wet location listed for showers and protected ceilings; Available in 120V or 120-277V
- 2700K, 3000K, 3500K, 4000K and 5000K field selectable CCT; 3000K and 4000K fixed CCT
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

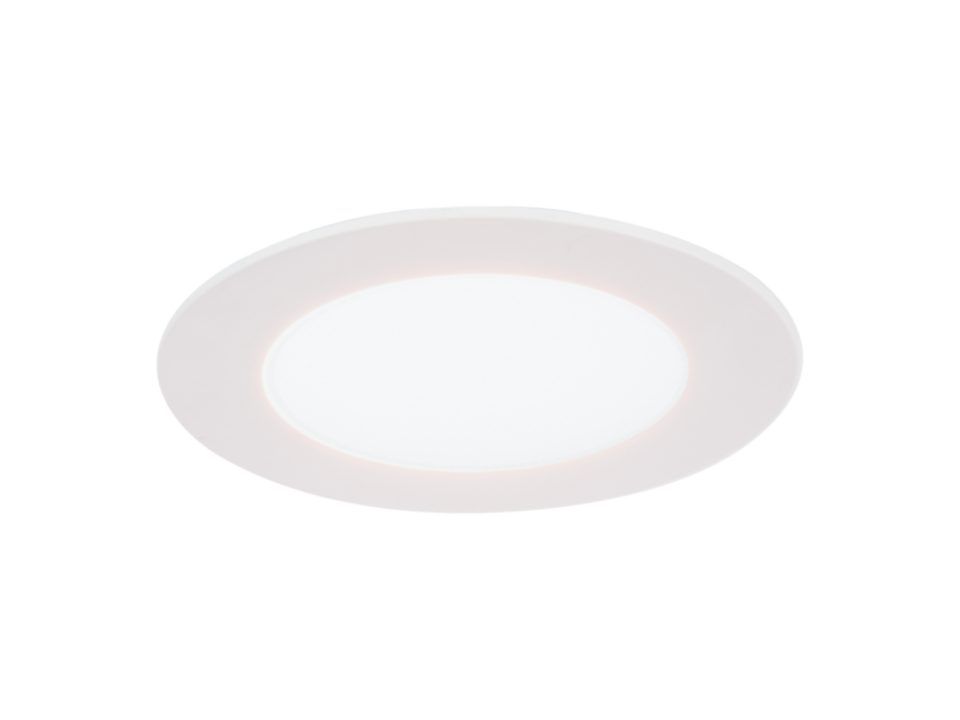

4-Inch LED lens downlight has a matte white flange finish with remote driver / junction box provides 600 lumens, has a 90 CRI, and is field selectable.
Specifications
General
| Application | Residential |
|---|---|
| Average Life | 50000 hr |
| Color | White |
| Color Rendering Index | 90 CRI |
| Color Temperature | 5000 K |
| Current Rating | 0.1 A |
| Driver Type | 120V 60Hz, LE & TE phase cut 5% dimming |
| Finish | Matte White Flange |
| IC Rated | 100 (mA) |
| Includes | Remote Driver / Junction Box |
| Lamp Type | LED |
| Lumens | 600 Lumens |
| Material | Aluminum |
| Mounting Type | Direct |
| Pack Qty | 6 pk |
| Series | HLB4 |
| Shape | Round |
| Temperature Rating | -30 to 40° C |
| Trim Type | Integrated |
| Type | Downlight |
| Voltage Rating | 120 V |
| Wattage Rating | 12 W |

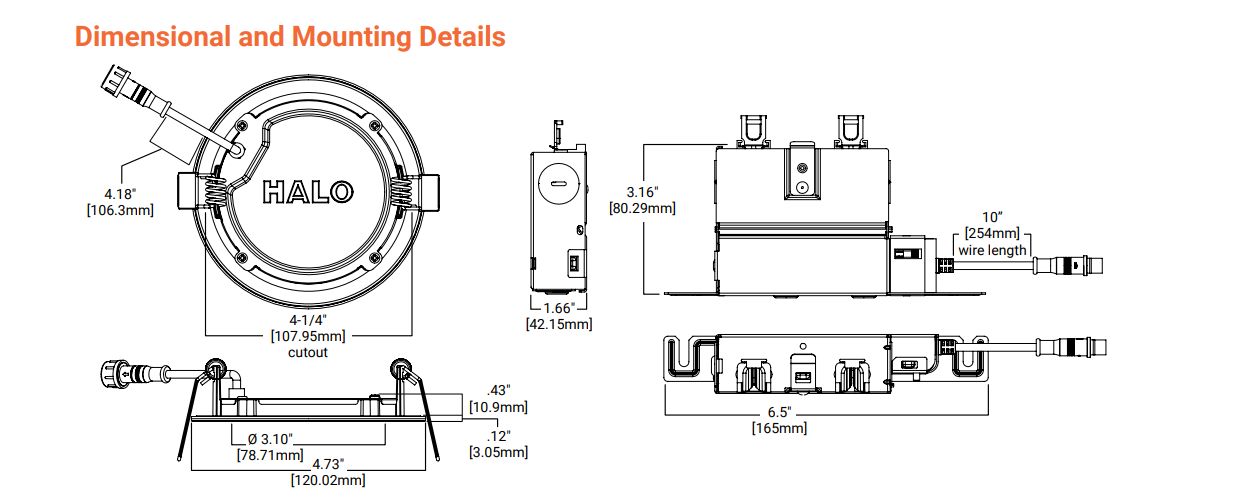

Dimensions
| Depth | 1.66 in |
|---|---|
| Diameter | 6-1/2 in (4-in LED Lens ) |
| Dimensions | 3.16 in H x 6.5 in W x 1.66 in D |
| Height | 3.16 in |
| Width | 6-1/2 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | China |
|---|---|
| Manufacturer Warranty | Five-year limited warranty |
Label Information
| Certification, Codes, Standards | cULus Certified type IC suitable for direct contact with air permeable insulation Not recommended for use in direct contact with spray foam insulation (reference NEMA LSD57-2013) Wet location listed and IP44 in gress protection Airtight per ASTM-E283-04 Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements EMI/RFI emissions per FCC 47CFR Part 15 consumer limits Contains no mercury or lead and RoHS compliant Photometric testing in accordance with IES LM-79-08 Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11 State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2016 JA8 High Efficacy Lighting ENERGY STAR certified (reference Certified Light Fixtures database) |
|---|
