HALO

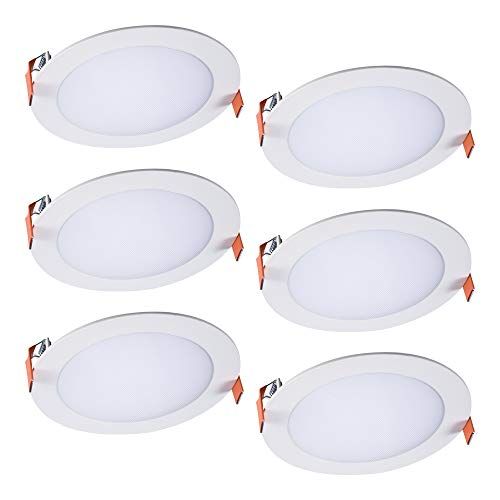

6-Inch 120-Volt LED MicroEdge Direct Mount Downlight, 6-Pack

Mfg.#
HLB6099FS1EMWR-6P
Sku#
2405348

Please select a store to view pricing and availability.

* Estimated stock levels as of Mon, Apr 22, 2024. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.

  • Ultra-thin round lens downlight with remote driver/junction box
  • Install into drywall/suspended ceilings (no J-box or housing required)
  • Install from below the ceiling in as little as a 1-1/2 plenum height
  • CRI: 90, L70 at 50,000 hours (70% lumen maintenance at 50,000 hours)
  • For Insulated Ceiling (IC) rated and Non-IC rated applications
  • AIR-TITE™ reduces airflow between unconditioned and conditioned spaces
  • ENERGY STAR™ certified, 5-year warranty
  • 5 selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K CCT

Description

Ultra-thin round LED lens downlight with remote driver/junction box

Specifications

General

Amps 0.1
Application Residential
CCT (K) 2700 K-5000 K
Color White
Color Rendering Index = 90 CRI minimum, field selectable 2700K, 3000K, 3500K, 4000K or 5000K CCT
Color Temperature 5000 K
Dimmable Yes
Driver Type 120V 60Hz, LE & TE phase cut 5% dimming
Finish Matte White
Fixture Shape Round
Lamp Type LED
Lumens 900
Material Die-cast aluminum mounting frame with integral flange
Mounting Type Direct Ceiling Mount
Series HLB6 Series
Shape Round
Type Downlight
Voltage Rating 120V
Watts 12W

Dimensions

Diameter 6 in
Weight 6.85
Width 6 in

Manufacturing Details
The following information is subject to change without notice

Country of Origin China
Manufacturer Warranty 5-Year
Prop 65 Warning Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Label Information

Certification, Codes, Standards cULus Certified type IC suitable for direct contact with air permeable insulation Not recommended for use in direct contact with spray foam insulation (reference NEMA LSD57-2013) Wet location listed and IP44 in gress protection Airtight per ASTM-E283-04 Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements EMI/RFI emissions per FCC 47CFR Part 15 consumer limits Contains no mercury or lead and RoHS compliant Photometric testing in accordance with IES LM-79-08 Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11 State of California Title 24 high efficacy LED compliance under JA8, reference Modernized Appliance Efficiency Database System (MAEDBS) for 2016 JA8 High Efficacy Lighting ENERGY STAR certified (reference Certified Light Fixtures database)

Related Documents

Brochure (PDF)

InstructionsPDF (PDF)
