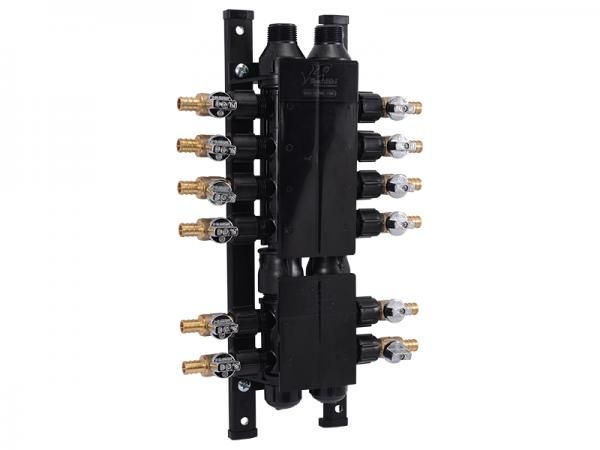

12-Port Home Run Manifold With Brass Crimp Ball Valve
- Mfg.#
- RM22712
- Sku#
- 2344893
- Compatible with PEX and PE-RT pipe.
- Connects to PEX pipe with copper crimp rings or stainless steel clamps.
- Minimum working temperature 33°F at 160 psi. Maximum working temperature 200°F at 80 psi.
* Estimated stock levels as of Wed, May 27, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Similar to an electrical breaker box, allows for central control for all water lines throughout the home. Designed for use in a PEX system. Certified for use in potable water systems.
Specifications
General
| Housing Material | Udel Polysulfone (PLS) |
|---|---|
| Inlet | 2-3/4 in |
| Manifold Ball Valves | Brass |
| Maximum Working Temperature | 200-degree F at 80 psi |
| Minimum Working Temperature | 33-degree F at 160 psi |
| Mounting Plate | Steel |
| Number of Ports | 12 |
| Outlet | 12-1/2 in Brass Valve |
| Type | Manifold |
Dimensions
| Height | 3-1/4 in |
|---|---|
| Length | 14-1/4 in |
| Width | 7 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | Chile |
|---|
Label Information
| Certification, Codes, Standards | The SharkBiteBarb Manifold Systems with Shut-off Valves are NSF listed to the ASTM F877 and CSA B137.5 product standard. The SharkBite Barb Manifold Systems with Shut-off Valves are also certified to the NSF/ANSI NSF 61. |
|---|
