Simpson Strong-Tie®

40-1/4-Inch Medium Strap Tie With Countersunk Nail Slots

Mfg.#
MSTC40
Sku#
2304194
  • Designed to resist wind and seismic forces

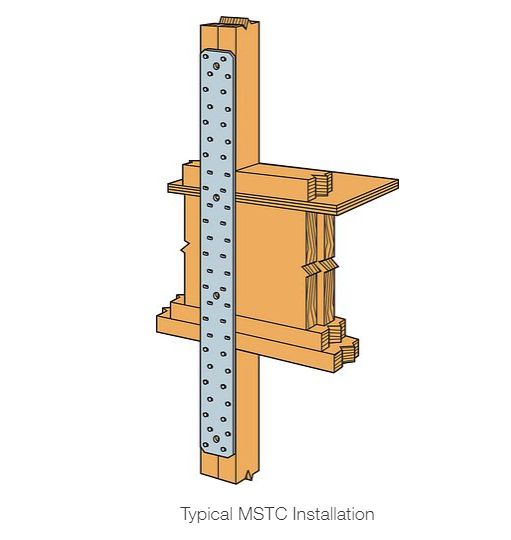

  • Floor-to-floor clear span application

* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.

Description

The MSTC is designed to resist tension loads in uplift applications. This medium strap tie utilizes a staggered fastener hole pattern to optimize strength. The MSTC is a load-rated, precut strap designed for quick installation and optimal performance.

MST is a high-capacity strap that can be installed with either nails or bolts. Suitable for double 2x member connections or greater.

Specifications

General

Coating Material Zinc Galvanized, G90
Finish Galvanized
Gauge 16
Material Steel
Nail Pattern Staggered
Pack Qty 1
Type Strap

Dimensions

Length 40-1/4 in
Thickness 54 mil
Weight 2.1 lb
Width 3 in

Related Documents

Brochure (PDF)

Install Sheet (PDF)

Installation Guide (PDF)
