3/8-Inch Width X 98-1/2-Inch Length Schiene Satin Anodized Aluminum L-Angle Tile Edge Trim, Accomodates 3/8-Inch Tiles
- Mfg.#
- SCHIENE AE100
- Sku#
- 2242253
- Prevents tiles from chipping
- Ideal for creating transitions on floors
- Features an approximately 1/8 in (3 mm)-wide visible surface for discreet transitions
- 87° slope to transfer point loads and protect tile edges
* Estimated stock levels as of Tue, Mar 31, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description

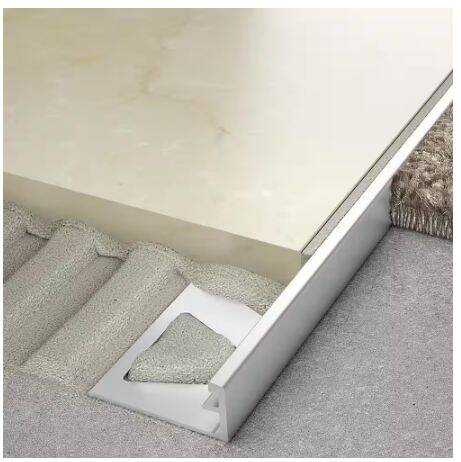

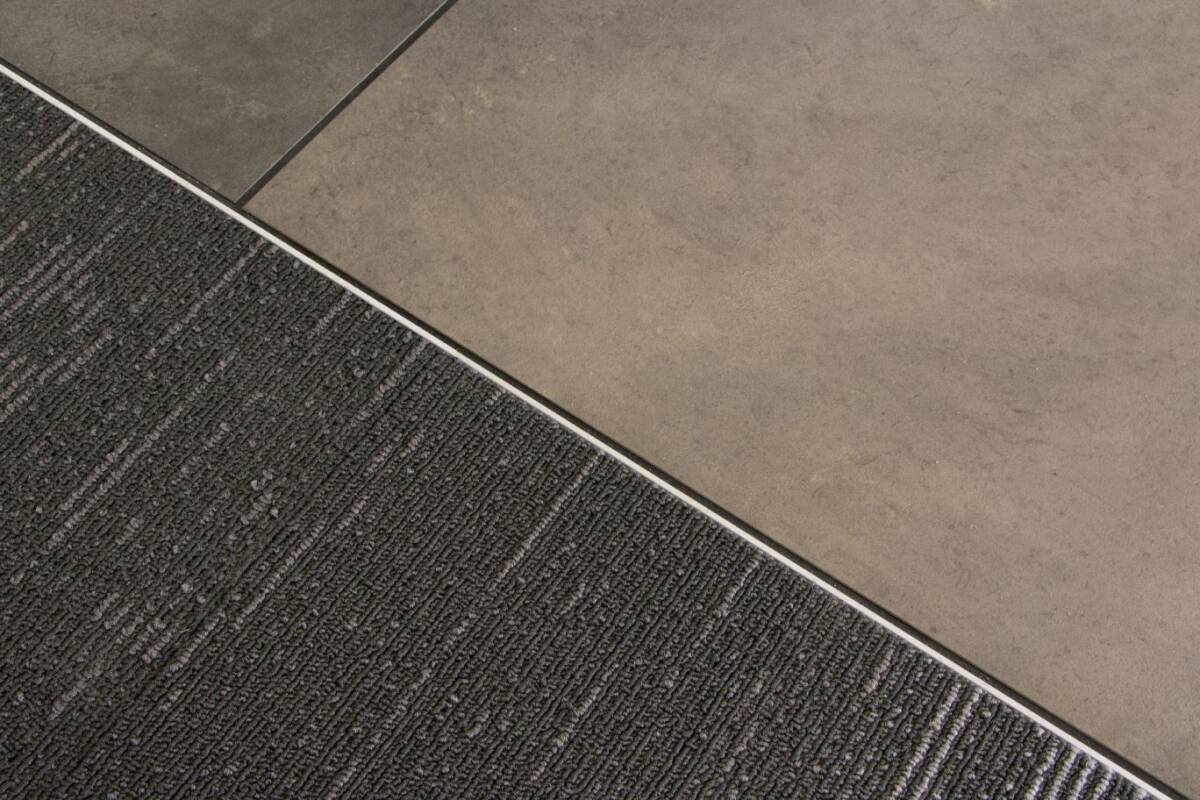

Schluter®-SCHIENE is designed to provide edging for tile coverings. Typical applications include edge protection where tile is bordered by carpet, at expansion joints, or as a decorative edging for stairs.

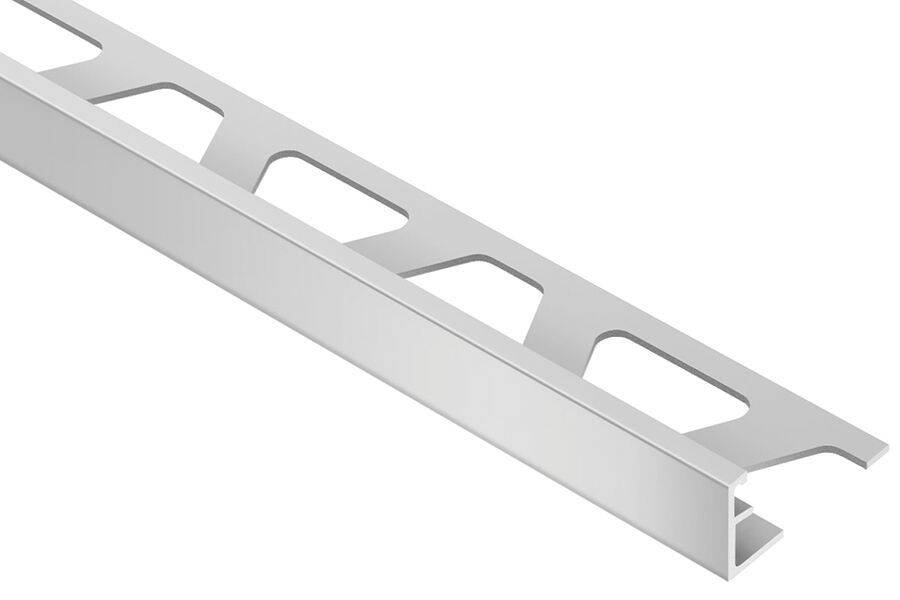

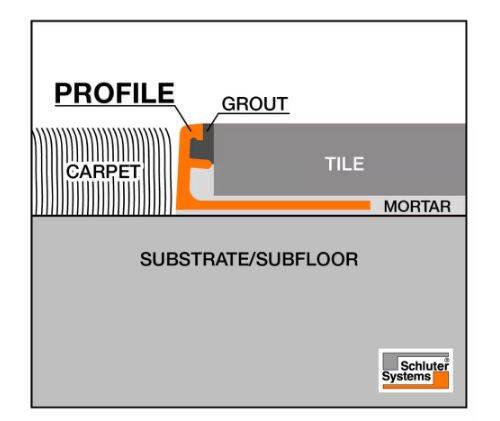

SCHIENE is available in stainless steel, solid brass, aluminum and anodized aluminum. SCHIENE is also available in textured color-coated aluminum finishes, which are suitable for floor installations within residential applications only. The profile features a trapezoid-perforated anchoring leg, which is secured in the mortar bond coat beneath the tile, and an 87° sloped vertical wall section that transfers point loads to the substrate and surface covering while protecting tile edges from damage. SCHIENE, in solid brass, aluminum, textured color-coated aluminum, and anodized aluminum, features a 5° sloped top flange and fillet at the anchoring leg/vertical section interface to enhance edge protection by reducing stresses on the tile, and, in sizes greater than 1/4 in (6 mm), features an integrated joint spacer that establishes a defined joint cavity between the tile and the profile.
Specifications
General
| Color | Silver |
|---|---|
| Finish | Satin Andonized Aluminum |
| Material | Aluminum |
| Profile Shape | L-Shaped |
| Suitable for Use With | 3/8-Inch Tiles |
| Type | Tile Edging |
Dimensions
| Height | 1 in |
|---|---|
| Length | 8 ft. 2-1/2 in |
| Width | 0.375 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 5 yr Limited |
|---|---|
| Prop 65 Warning |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
|
Videos
Related Documents
Brochure (PDF)
