- Some stock photographs may show options that are not included. Please check product description.

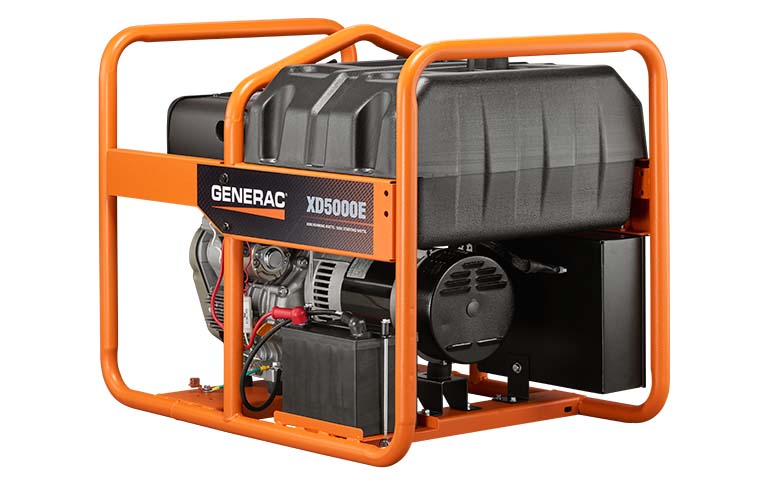

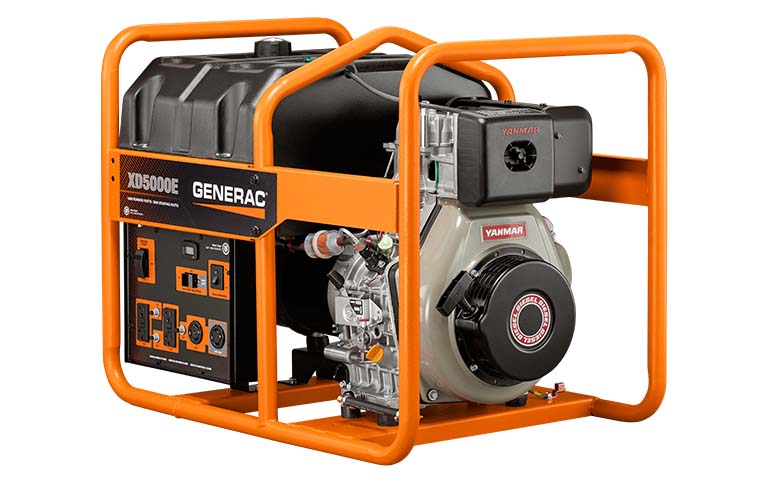

5000-Watt Electric Start Diesel Portable Generator
- Mfg.#
- 6864
- Sku#
- 2084580
Please select a store to view pricing and availability.
* Estimated stock levels as of Tue, Nov 28, 2023. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
- Integrated lifting eye allows for easy transport and security on the jobsite
- 12-gallon fuel tank provides a long run-time of 32.4 hours @ 50% load
- Yanmar LW Series 435cc air-cooled direct injection, industrial-grade diesel engine
- 1-1/4-inch steel cradle for added strength and durability
Description
If you've got a tough job to do, look no further than the XD5000E generator.
The sturdy steel frame features an integrated lifting eye for easy transport and on-site security. 6% total harmonic distortion for smooth operation of tools, appliances, even sensitive electronics. And its engineered to keep on running, thanks to its large fuel tank.
Read and understand all manufacturer warnings included within product packaging and instruction manual. Be diligent and use caution whenever using tools and machinery to avoid serious injury.
Specifications
General
| AC Maximum Output Motor Starting Watts | 5,500 |
|---|---|
| AC Rated Output Running Watts | 5,000 |
| Battery Included | No |
| Battery Type | 12V 35Ah, Group U1 |
| Engine | Air-cooled, 4 cycle, Vertical Cylinder Diesel |
| Engine Displacement | 435cc |
| Engine Make | OEM Branded |
| Engine RPM | 3,600 |
| Frequency Hz | 60 |
| Fuel Tank Capacity | 12 gal |
| Fuel Type | Gasoline |
| Horsepower | 13.38 hp |
| Includes | Engine Oil, Owner's Manual |
| Low Oil Shutdown | Low Pressure |
| Lubrication Method | Pressure |
| Neutral Bonded to Ground | Yes |
| Number of Outlets | 6 |
| Oil Capacity | 1.7 qt |
| Oil Type | SAE 10W-30 |
| Run Time | 50% of Rated Load: 32.4 hr |
| Starting System | Electric with Recoil Back-up |
| Total Harmonic Distortion (THD) | <6% |
| Type | Gasoline Powered Portable Generator 5000 Watt |
| Volts | 120/240 |
| Watts | 5000 |
Dimensions
| Height | 25.6 in |
|---|---|
| Length | 33.1 in |
| Weight | 252 lb |
| Width | 22-1/2 in |
Manufacturing Details
The following information is subject to change without notice
| Manufacturer Warranty | 2 Yr Limited |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including CO, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
|
| Shop USA | Yes |
Label Information
| Certification, Codes, Standards | ETL Listed, CARB, UL Listed |
|---|
