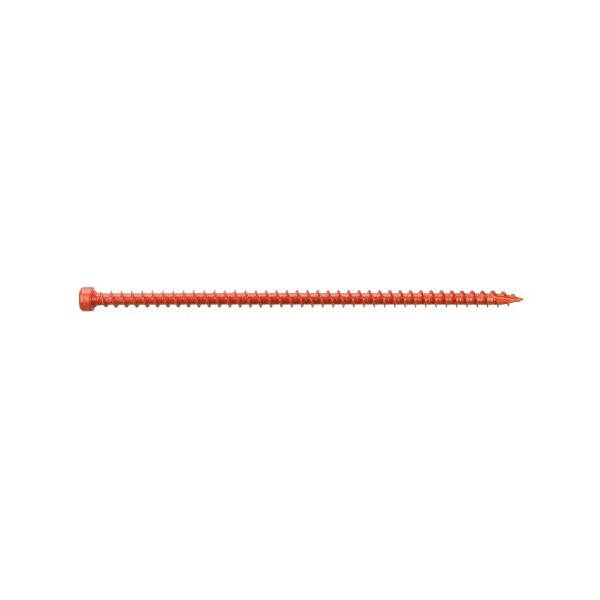

6-Inch Type 17 Point Truss Screw Kit
- Mfg.#
- SDWC15600B-KT
- Sku#
- 2011229
- Fully threaded shank engages the entire length of the fastener, providing a secure connection between the roof and wall framing members
- Cap-style head countersinks fully into the double top plate to avoid interference with drywall or finish trades
- Wide tolerance on installation angle makes it easy to install the SDWC correctly
- Can be installed from inside the structure, eliminating exterior work on the upper stories and enhancing job safety
- Fastening can be performed before or after exterior sheathing is applied for added flexibility
* Estimated stock levels as of Wed, Apr 1, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The Strong-Drive SDWC truss screw provides a stud-to-bottom plate or stud-to-top plate connection as well as fastening trusses and rafters to top plates. The full-threaded shank engages the entire length of the fastener, providing a secure connection. The SDWC is tested in accordance with ICC-ES AC233 (screw) and AC13 (wall assembly and roof-to-wall assembly) for uplift and lateral loads between wall plates and vertical wall framing and between the top plate and the roof rafters or trusses.
Specifications
General
| Application | For remodeling, fencing, storage, cabinets and framing |
|---|---|
| Color | Orange |
| Drive Size | T30 |
| Drive Type | 6-Lobe |
| Finish | Zinc-Plated |
| Head Type | Cap |
| Includes | (2) Matched-Tolerance Driver Bits |
| Material | Steel |
| Point Type | Type 17 |
| Thread Length | 5-3/4 in |
Dimensions
| Length | 6 in |
|---|
Label Information
| Certification, Codes, Standards | IAPMO UES ER-262 Certified |
|---|
