SurgeArrest™ Whole Home Surge Protective Device
- Mfg.#
- HEPD50
- Sku#
- 1827971
* Estimated stock levels as of Sun, May 3, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 50 kA of surge protection per phase. The surge protection device is in a NEMA 4X housing. The surge protection device is 3.23 inches tall, 3.72 inches wide and 2.10 inches deep. The surge protection device is UL listed.
Specifications
General
| Current Rating | 50 kA per phase |
|---|---|
| Enclosure Rating | NEMA 4X |
| Input Voltage | 600 V L-N, 600 V L - G, 1000 V L - L, 900 V N - G |
| Mounting Type | Panel |
| Number of Phases | 1 |
| Overall Depth | 3.72 in |
| Overall Length | 6 in |
| Overall Width | 1.42 in |
| Type | Surge Protector |
| Volts | 120/240 |
| Wiring Configuration | 3-wire (isolated ground) |

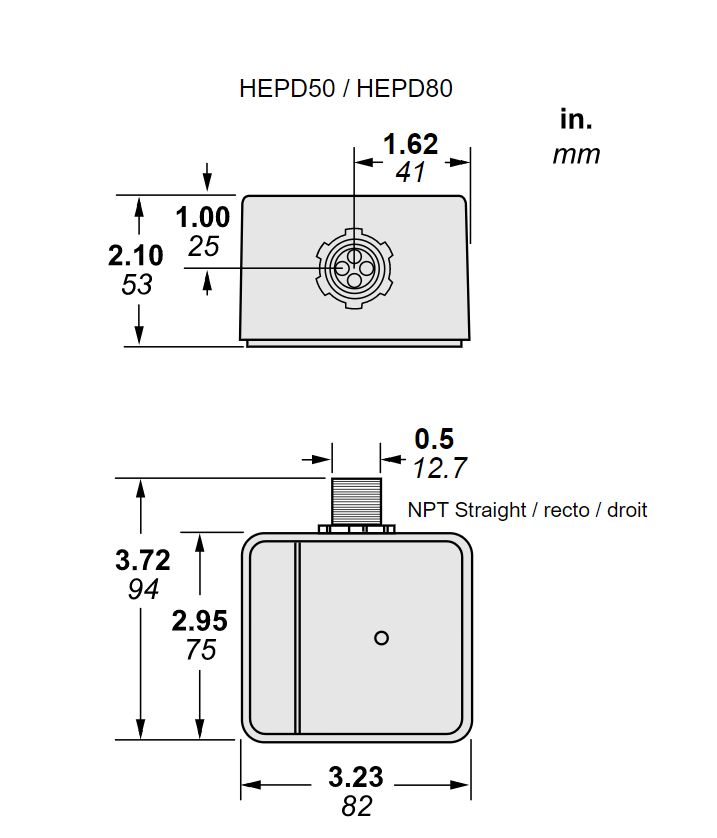

Dimensions
| Depth | 2.10 in |
|---|---|
| Height | 3.23 in |
| Width | 3.72 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | MX |
|---|---|
| Prop 65 Warning |
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
|
Label Information
| Certification, Codes, Standards | UL 1449, CUL, UL 1449:ed. 4: type II |
|---|
Related Documents
Brochure (PDF)

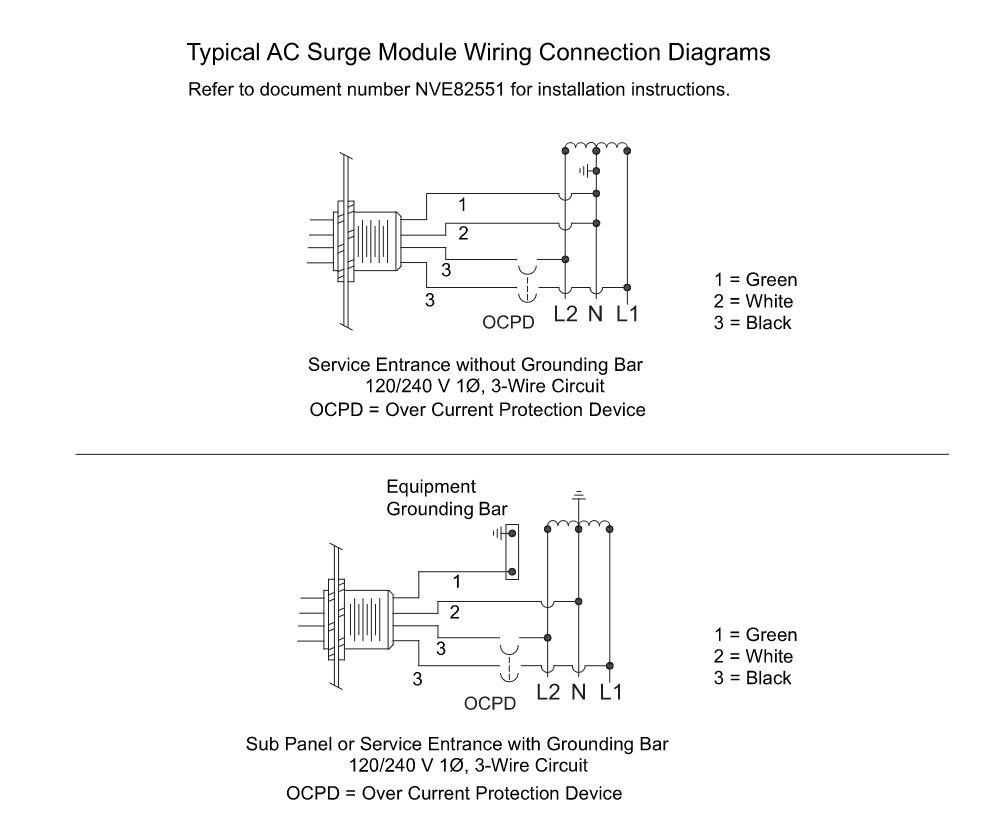

Installation Guide (PDF)
PLEASE NOTE: Product information for this item was provided by a third-party source and has not been verified. Please use our feedback button to report any errors. Read our Terms of Use.
