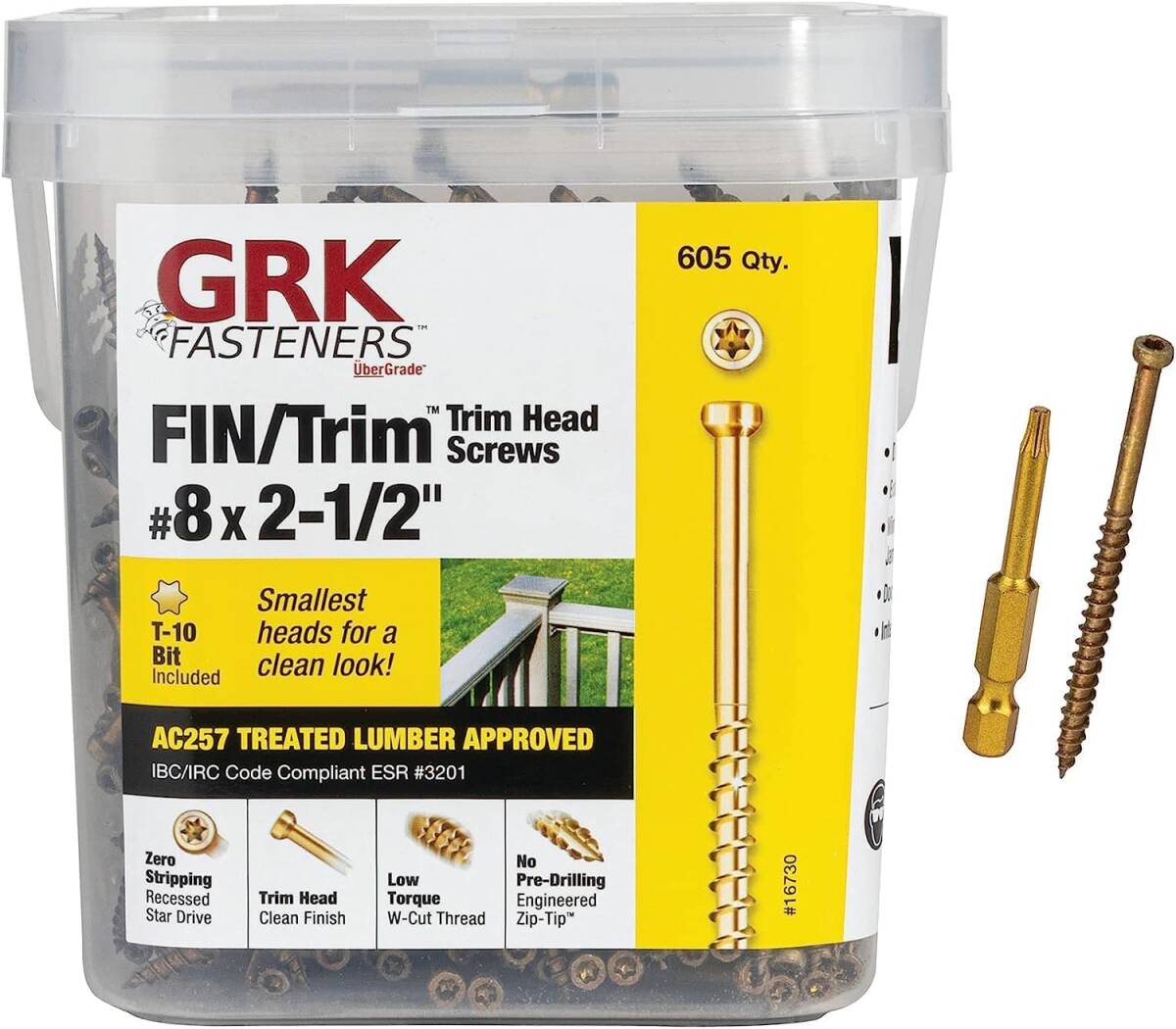

#8 X 2-1/2-Inch Finishing Trim Head Screw, 605-Pro Pack
- Mfg.#
- GRK16730
- Sku#
- 1799170
- Trim Head: For a clean, finished look
- Star Drive Recess: Zero stripping, with 6 points of contact
- Climatek™ Coating: ICC-ES AC257 code approved for use in treated lumber
- Code Approved: For structural applications ESR-3201
- W-Cut™ For a low torque, faster drive
* Estimated stock levels as of Sat, May 9, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Designed for most fine carpentry applications, as well as window extension jambs, joining cabinets, and more. A combination of the smallest screw head available and code approved structural performance results in the most secure, concealed fastening in the industry.
Specifications
General
| Applicable Materials | Wood |
|---|---|
| Application | Cabinets, Fine Carpentry, Trim Work, Deck Rails, Exerior/Interior Trim, Joining Cabinets, Most Fine Carpentry Applications such as Crown Moulding and Window/Door Jambs |
| Color | Gold |
| Drive | Torx |
| Drive Size | T-10 |
| Drive Style | Star |
| Drive Type | T-10 Star |
| Driver Bit Size | T10 |
| Finish | Anti-Corrosion Topcoat |
| Head Diameter | 0.197 in |
| Head Height | 0.077 in |
| Head Style | Round |
| Head Type | Trim |
| Includes | T10 Bit |
| Indoor/Outdoor | Indoor/Outdoor |
| Material | Steel |
| Minor Diameter | 0.106 in |
| Pack Qty | 605 |
| Point Type | Zip-Tip™ |
| Series | FIN/Trim™ |
| Shear Strength | 360 lb |
| Tensile Strength | 499 lb |
| Thread Length | 1.57 in |
| Thread Size | #8 |
| Type | Trim Head Screw |
Dimensions
| Diameter | #8 |
|---|---|
| Length | 2.5 in |
| Shank Diameter | 0.116 in |
| Size | #8 X 2.5-Inch |
| Weight | 4.1 lb |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | China |
|---|---|
| Prop 65 Warning |
This product can expose you to a chemical (or chemicals) that are known to the State of California to cause cancer or reproductive harm. For more information go to www.P65Warnings.ca.gov
|
Label Information
| Certification, Codes, Standards | ICC-ES AC257 code approved for use in treated lumber (For cedar, redwood, and other naturally protected woods, GRK recommends 305 or 316 Stainless Steel fasteners.) |
|---|
