- Some stock photographs may show options that are not included. Please check product description.

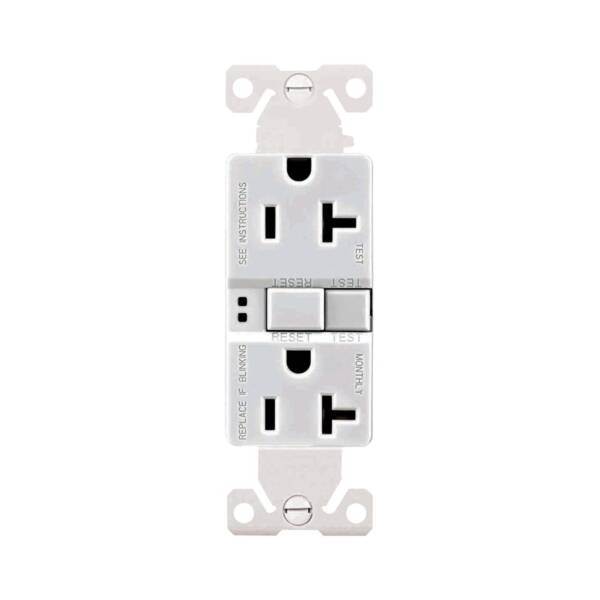

Arrow Hart 20-Amp 125-Volt Self-Test GFCI Duplex Receptacle, 1-Pack, White
- Mfg.#
- SGF20W
- Sku#
- 1546647
- Performs periodic self-tests to ensure integrity of GFCI protection
- Visual trip indicator light gives quick notification of a tripped or "end of life" condition
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Ground termination with back wire clamp provides secure wiring and reduces installation time
- Line side terminals are backed out and staked for fast installation
* Estimated stock levels as of Sat, Apr 11, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
Eaton's Arrow Hart line of GFCI receptacles ensure electrical shock protection with periodical automatic testing. If no GFCI protection is present, the receptacle will render itself inoperable and a red indicator light will glow notifying the user there is no power and the device must be replaced. GFCIs provide state-of-the-art, dependable electrical shock protection. In addition to being tested to the highest standards to help ensure safety, Arrow Hart GFCIs will deny power and prevent re-setting if the device is no longer able to provide safe, protected power.
Specifications
General
| Color | White |
|---|---|
| Color Family | White / Off-White |
| Material | PVC Polycarbonate |
| Mounting Type | Wall |
| Number of Poles | 2-Pole |
| Number of Receptacles | 2 |
| Number of Wires | 3-Wire |
| Outlets & Plugs Amp Rating | 20-Amp |
| Outlets & Plugs NEMA Configuration | 5-20R |
| Outlets & Plugs Pack QTY | 1-Pack |
| Outlets & Plugs Style | Self-Test |
| Outlets & Plugs Voltage Rating | 125-Volt |
| Outlets & Plugs Wiring Type | Back and side |
| Series | Arrow Hart |
| Type | GFCI Duplex Receptacle |
| Wire Size | #14 - 10 AWG |
Dimensions
| Depth | 2.823 in |
|---|---|
| Height | 4.635 in |
| Width | 2.01 in |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | CN |
|---|
Label Information
| Certification, Codes, Standards | cULus Listed to UL 498/UL 943/Meets All UL 943 (GFCI)/UL 498/Applicable CSA Certified/NOM Certified |
|---|
PLEASE NOTE: Product information for this item was provided by a third-party source and has not been verified. Please use our feedback button to report any errors. Read our Terms of Use.
