Prime-Line

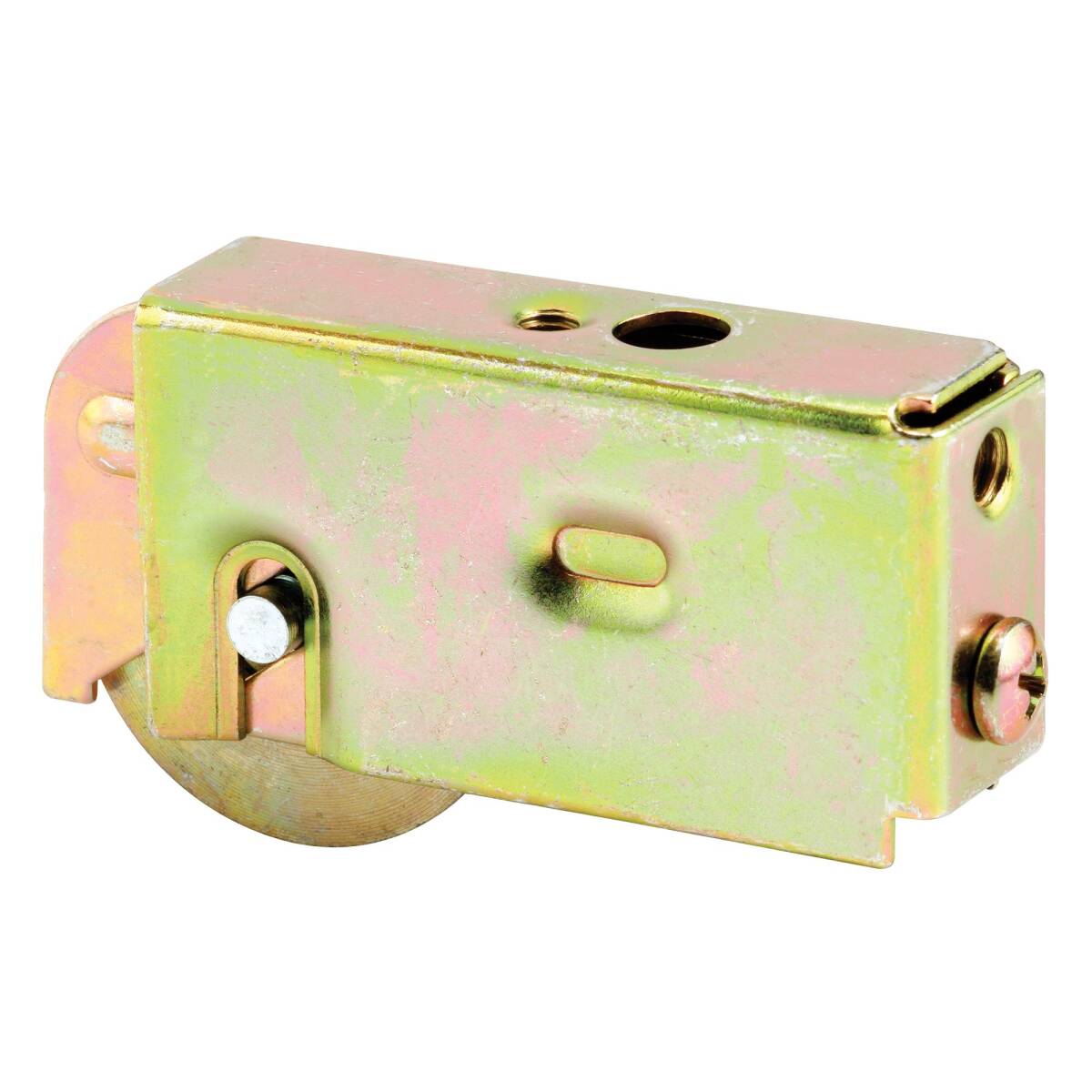

1-1/2 in. Roller Assembly With Ball Bearing And Plain Back Housing - Steel, 1-Pack

Mfg.#
D 1563
Sku#
147975

* Estimated stock levels as of Wed, Apr 1, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.

Description

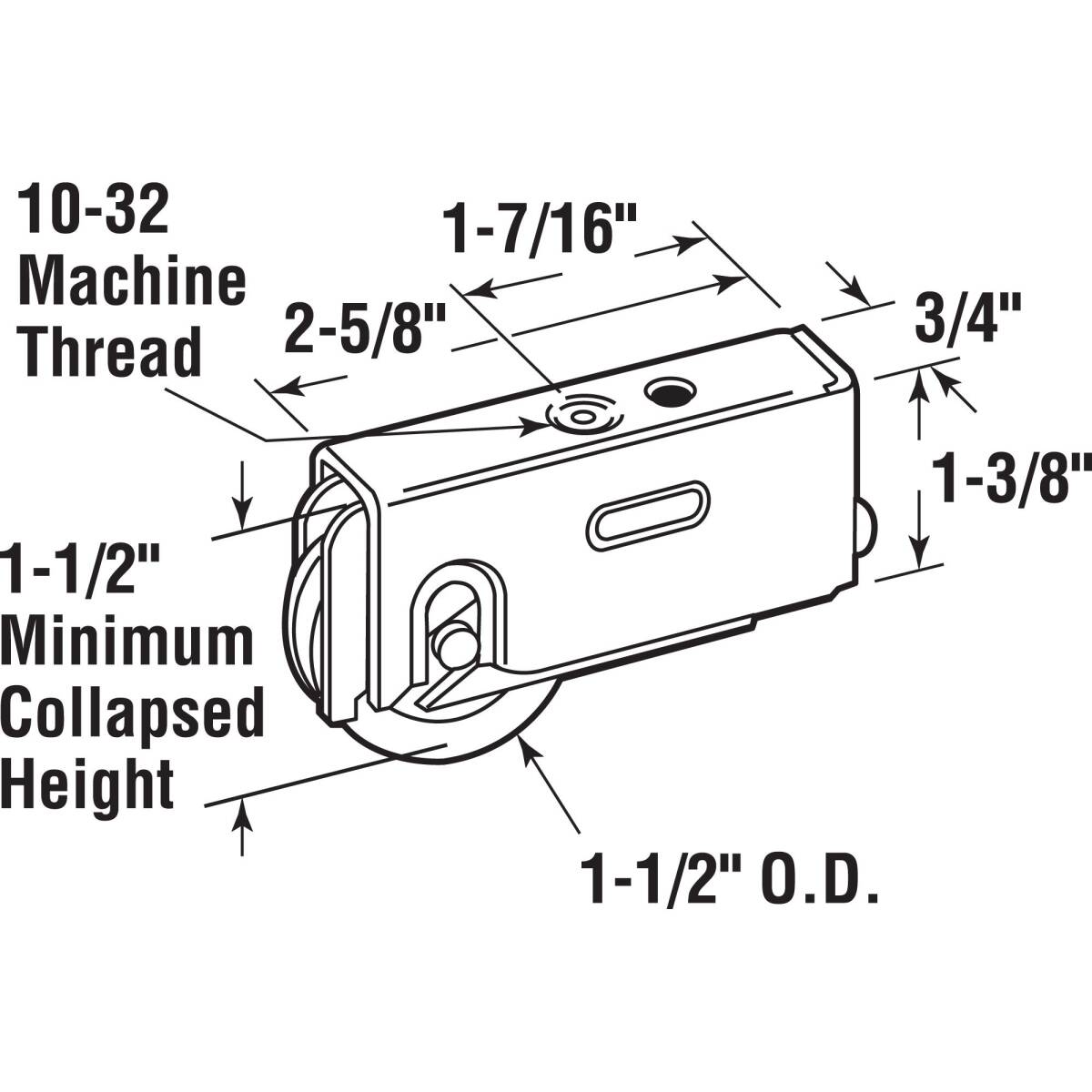

This is a plain back patio door roller assembly with a 1-1/2 inch concave or grooved steel ball bearing roller. It has a plain back housing that is 3/4 inch wide and 1-3/8 inch tall. It is rear adjusting with a 1/4-20 threaded mounting hole on the back end and an optional use #10-32 threaded hole on top. It is used by Air Control, Howmet, Krestmark and a variety of other manufacturers of patio doors.

  • Can be found on Air Control, Howmet, Krestmark and a variety of other sliding patio door manufacturers
  • 1/4-20 threaded mounting hole on the back end and an optional use 10-32 threaded hole on the top of the housing

Specifications

General

Mounting Hole Size 1/4-20, #10-32
Pack Qty 1
Roller Diameter 1-1/2 in
Type Sliding Door Roller

Dimensions

Height 1-3/8 in
Length Housing: 2-5/8 in
Width Housing: 3/4 in

Related Documents

Brochure (PDF)
