Schneider Electric USA

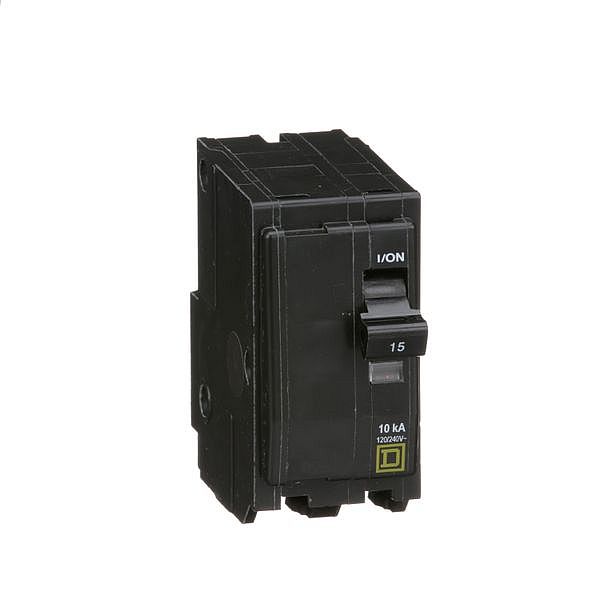

15-Amp 2-Pole QO™ Miniature Circuit Breaker

Mfg.#
QO215CP
Sku#
665653

Please select a store to view pricing and availability.

* Estimated stock levels as of Tue, Apr 23, 2024. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.

Description

QO™ and QOB™ one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip™ trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO™ circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO™ circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 QO™ circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

General

Actuator Type Magnetic, Thermal
Amps 15
Circuit Breaker Type Standard Double-Pole Circuit Breaker
Interrupt Rating 10 kA
Mounting Type Plug
Number of Phases 1
Poles 2
Series QO™
Volts 120/240
Wire Size AWG 14...AWG 8 copper or aluminium

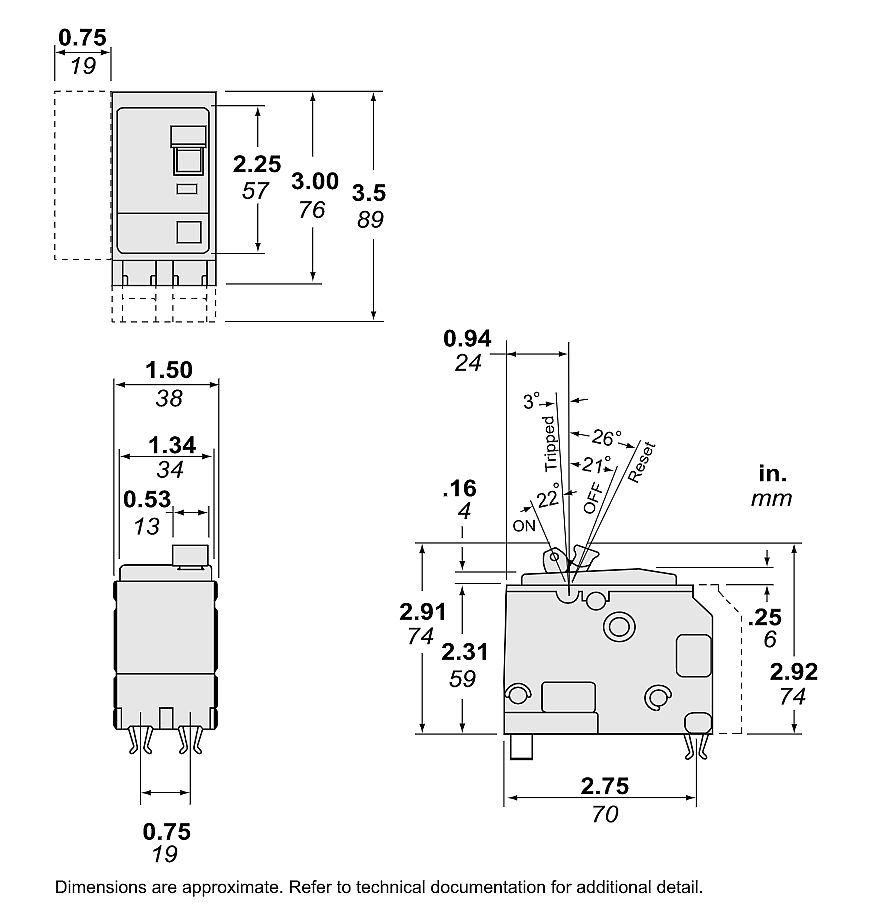

Dimensions

Height 2.99 in
Length 2.91 in
Width 1.5 in

Manufacturing Details
The following information is subject to change without notice

Country of Origin MX
Prop 65 Warning Warning WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Label Information

Certification, Codes, Standards UL Listed; CSA

Related Documents

Brochure (PDF)
