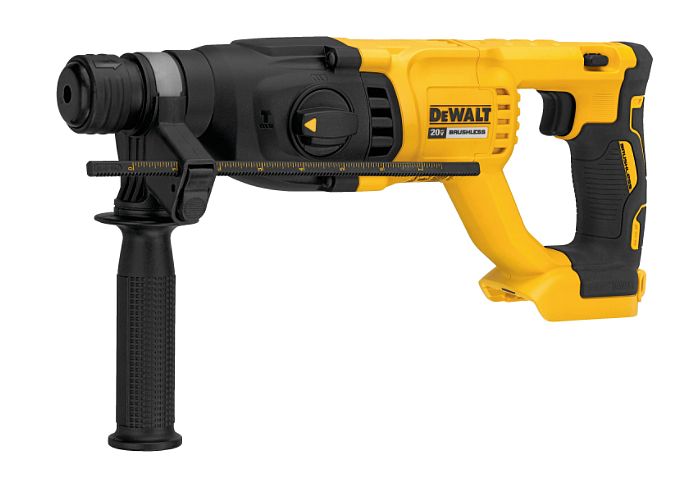

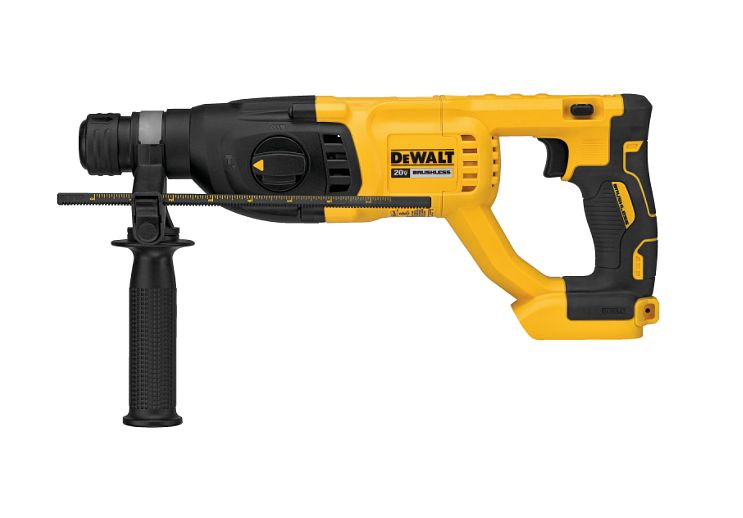

20-Volt Max Xr Cordless SDS-Plus Variable Speed D-Handle Rotary Hammer, Tool Only
- Mfg.#
- DCH133B
- Sku#
- 599035
- 2.6 Joules of impact energy for fast drilling in concrete.
- Lightweight design makes this tool ideal for forming, rod hanging, structural connections, beam & column anchorage, steel stanchion mounting, and clip & bracket mounting.
- Brushless motor and durable German-engineered mechanism for efficient performance and runtime.
- Rotating dial to set tool to a specific applicaiton mode - Drill, Hammer Drill, or Chip.
* Estimated stock levels as of Sun, Oct 25, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
The 20V MAX* Brushless 1-inch Rotary Hammer is a high-performance drill powered by a brushless motor and a durable German engineered mechanism, delivering 2.6 Joules of impact energy. The lightweight design makes this tool ideal for forming, rod hanging, structural connections, beam & column anchorage, steel stanchion mounting, and clip & bracket mounting. This hammer features a rotating dial to set the tool to a specific application mode - drill, hammer drill, or chip.
* Maximum initial battery voltage (measured without a workload)
Specifications
General
| BPM | 0 To 5,550 |
|---|---|
| Bare Tool/Kit | Tool Only |
| Battery Chemistry | Lithium-Ion |
| Battery Included | No |
| Blow Energy | 1.92 ft -lb |
| Charger Included | No |
| Chipping | Yes |
| Chuck Size | 1 in |
| Chuck Type | SDS-Plus |
| Clutch Type | Mechanical |
| Control Type | Trigger |
| Corded/Cordless | Cordless |
| Drilling Capacity | 3/16 To 5/8 in |
| Impact Energy | 2.6 J |
| Includes | DCH133 Rotary Hammer, 360-degree Side Handle, Depth Rod |
| Motor | Brushless |
| No Load RPM | 0 To 1,500 |
| Nominal Volts | 20 |
| Optimal Concrete Drilling | 3/16 To 5/8 in |
| RPM | 1500 |
| Type | Rotary Drill |
Dimensions
| Length | 15.26 in |
|---|---|
| Weight | 4.6 lb |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | China |
|---|---|
| Manufacturer Warranty | 3 Years Limited |
| Prop 65 Warning |
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: Lead from lead-based paints, Crystalline silica from bricks and cement and other masonry products, and Arsenic and chromium from chemically treated lumber. For more information, go to www.P65Warnings.ca.gov.
|
Label Information
| Certification, Codes, Standards | CSA Listed |
|---|
