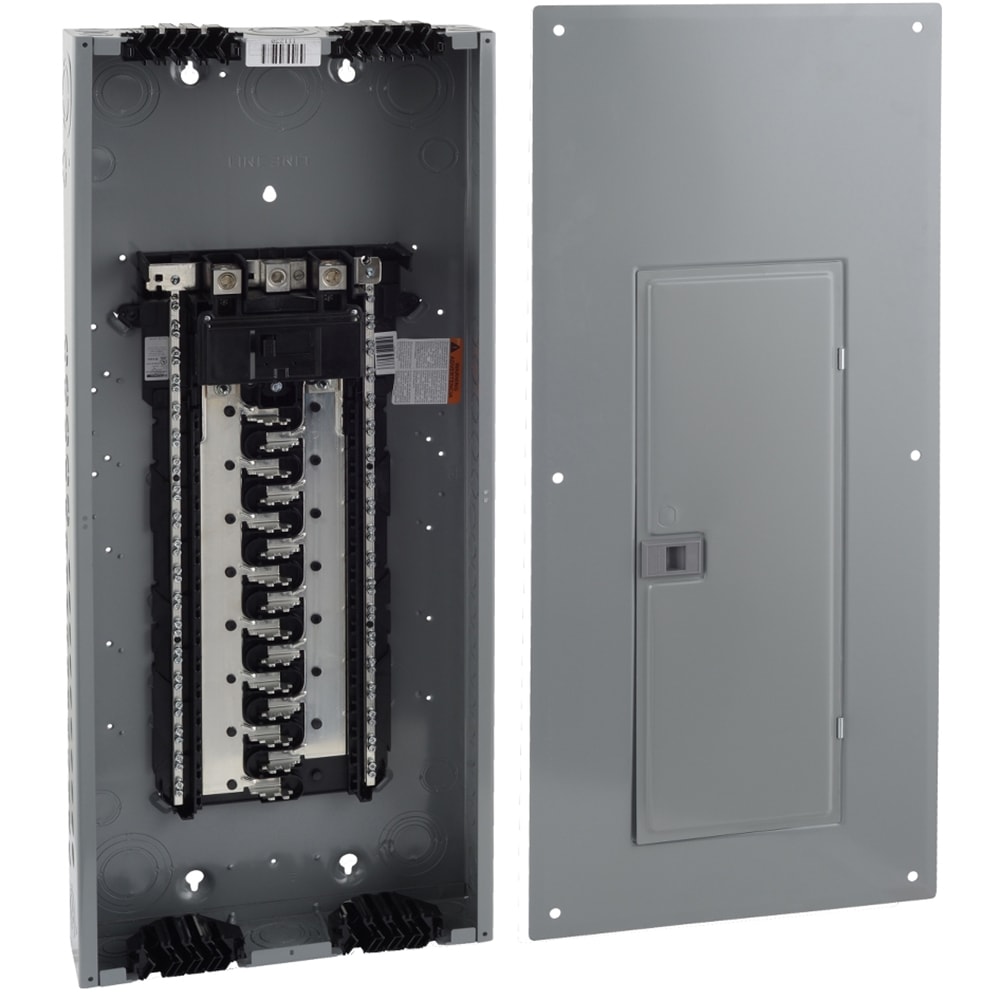

150-Amp Main Lug Load Center — 30-Space, 60-Circuit, Gray
- Mfg.#
- HOM3060M150PC
- Sku#
- 5751532
- Designed for 120/240 VAC service with a 150 A main rating
- Features 30 spaces providing up to 60 branch circuits
- Includes one 2-pole 150 A main breaker preassembled
- Constructed from sheet steel with a baked enamel/tin finish
- Features an aluminum bus bar and a 22 kA interrupting rating
* Estimated stock levels as of Fri, Oct 23, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
This is a 150-Amp, 30-space, 60-circuit main lug load center by Square D — a durable, no-nonsense electrical panel for homeowners or contractors who need reliable service for medium to large residential or light commercial installs. With a baked enamel/tin gray finish on heavy-gauge sheet steel and a NEMA 1 enclosure in the door, it provides a clean, serviceable hub for distributing 120/240 VAC power. The load center arrives supply-ready with a 2-pole 150 A main circuit breaker included, so it’s suited for installations that require a central main breaker and multiple branch circuits for HVAC, kitchen, laundry, lighting and general-purpose outlets. Made in the U.S., the panel’s 30 spaces accommodate tandem or full-size breakers to reach 60 circuits, making it a flexible choice when expanding service or replacing an older panel while keeping the electrical layout organized and accessible.
Specifications
General
| Amps | 150 |
|---|---|
| Breaker/Load Center Type | Main Breaker |
| Bus Bar Material | Aluminum |
| Cable Size | 4 AWG to 250 kcmil Al/Cu |
| Color | Gray |
| Cover/Lid Type | Flush, Surface |
| Current Rating | 150 A |
| Enclosure Type | NEMA 1 in door |
| Finish | Baked Enamel/Tin |
| Includes | (1) 2P 150 A 120/240 VAC Main Supply Ready Assembled Circuit Breaker |
| Interrupt Rating | 22 kA |
| Material | Sheet Steel |
| Number of Circuit Breakers | 30 |
| Number of Circuits | 60 |
| Number of Phases | 1 |
| Spaces | 30 |
| Temperature Rating | 23 to 104-degree F |
| Type | Main Lug Load Center |
| Voltage Rating | 120/240 VAC |
| Wiring Configuration | 3-Wire |
Manufacturing Details
The following information is subject to change without notice
| Country of Origin | US |
|---|---|
| Shop USA | Yes |
PLEASE NOTE: Product information for this item was provided by a third-party source and has not been verified. Please use our feedback button to report any errors. Read our Terms of Use.
