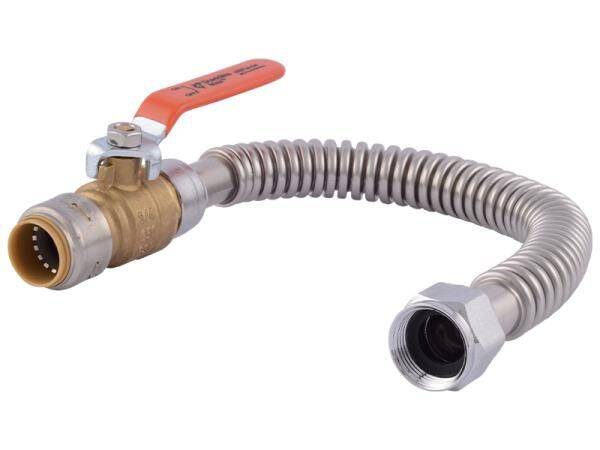

3/4-inch x 3/4-inch Max Brass Push Corrugated Water Heater Connector with Ball Valve
- Mfg.#
- URSS3088FX18BV
- Sku#
- 3207222
- Fastest way to install a water heater with PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe.
- Can be installed on wet lines and pressure tested immediately.
- Integrated ball valve for easy shut-off
- Stainless steel retainer adds strength and durability.
- Fitting body is high-performance DZR lead-free brass.
* Estimated stock levels as of Tue, Sep 22, 2026. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
Description
SharkBite Max™ stainless-steel corrugated flexible water heater connectors with ball valves allow you to work in tight spaces and easily connect water heaters with existing pipes that don't line up. Integrated ball valve allows the water heater supply to be shut off. Approved for use on electric or gas water heaters with a flue vent. Innovative design reduces the need for extra joints or fittings allowing for faster install time.
SharkBite push-to-connect fittings are the fastest when compared to other conventional plumbing methods.
Comparison relates to 1st generation SharkBite push-to-connect products.
Specifications
General
| Applications | Residential and commercial potable water, recirculation, hydronic heating/cooling (up to 50% glycol concentration) and direct burial (wrapping required). |
|---|---|
| Materials | Lead-Free DZR Brass |
| Max Temperature | 180°F |
| PSI (Maximum) | 200 PSI |
| Type | Ball Valve |
Dimensions
| Size | 3/4 inch x 3/4 inch |
|---|
Label Information
| Certification, Codes, Standards | ASME A112.18.6/CSA B125.6, ASME A112.4.14/CSA B125.14 - ball valve, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372 |
|---|
