Southwire Stephens Triplex Building Wire, 2-2-4 Awg, Per Foot
- Some stock photographs may show options that are not included. Please check product description.
Stephens Triplex Building Wire, 2-2-4 Awg, Per Foot
- Mfg.#
- 538-4800J
- Sku#
- 338319
Please select a store to view pricing and availability.
* Estimated stock levels as of Tue, Sep 26, 2023. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
- Conductors are stranded, compressed 1350-H19, H16 or H26 aluminum, insulated with vulcanized interlinked polyethylene (VIP 1), Southwire's cross-linked polyethylene
- Neutrals are triple yellow extruded stripe
- Cables with "YES" neutrals have sequential footage markers
- Conductors are durably surface printed for identification

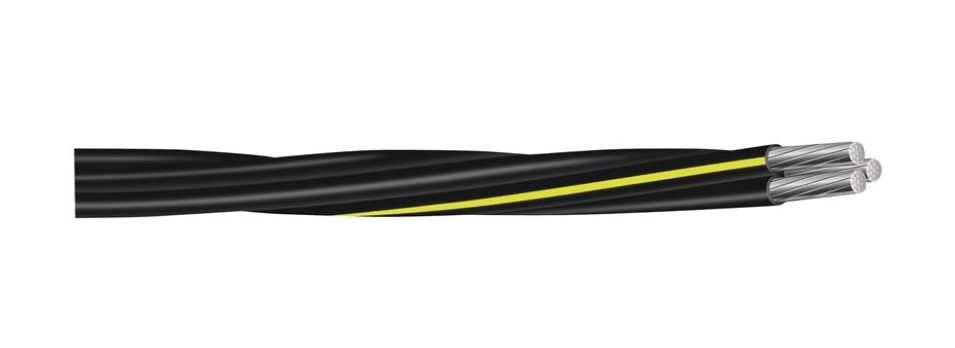

- Two-phase conductors and one neutral conductor are cabled together to produce the triplex cable configuration
- Conductors are also available paralleled
Description
Consists of two cross-linked polyethylene insulated phase conductors triplexed with a yellow-striped, cross-linked polyethylene insulated neutral. High quality heat and moisture-resistant cross-linked polyethylene is rated 75-degrees Celsius for wet and 90-degrees Celsius for dry locations. 120 amp maximum in duct or 165 amp in direct earth burial applications with a maximum conductor temperature of 90-degrees Celsius, 600 volt. 2 - 2 - 4 URD x 500 ft spool. UL Listed.
Specifications
General
| Color | Multicolor |
|---|---|
| Conductor Insulation | PVC |
| Conductor Material | Copper |
| Current Rating | 20 A |
| Gauge | 2-2-4 |
| Insulation Material | PVC |
| Number of Conductors | 2 |
| Operating Temperature | 90-Degree C |
| Sheath Color | Yellow |
| Sheath Material | Nylon |
| Strands per Conductor | 1 |
| Type | Building Wire |
| Voltage Rating | 600 V |
| Wire Size | 2 AWG |
Dimensions
| Length | 1 ft |
|---|
Manufacturing Details
The following information is subject to change without notice
| Certification, Codes, Standards | ASTM B-230/B-231/B-609/B-901 Specified; UL Listed |
|---|---|
| Country of Origin | US |
| Shop USA | Yes |
