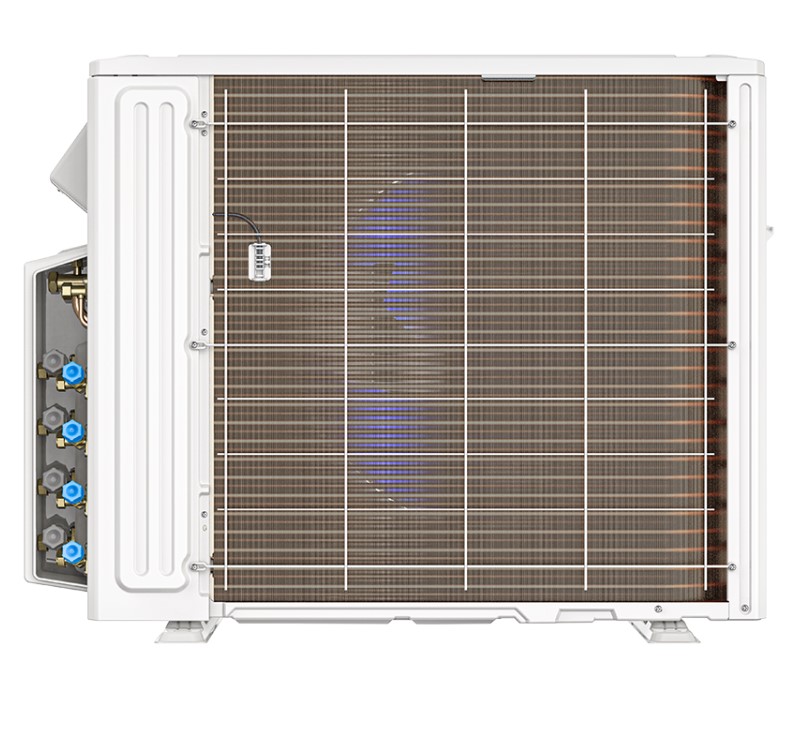

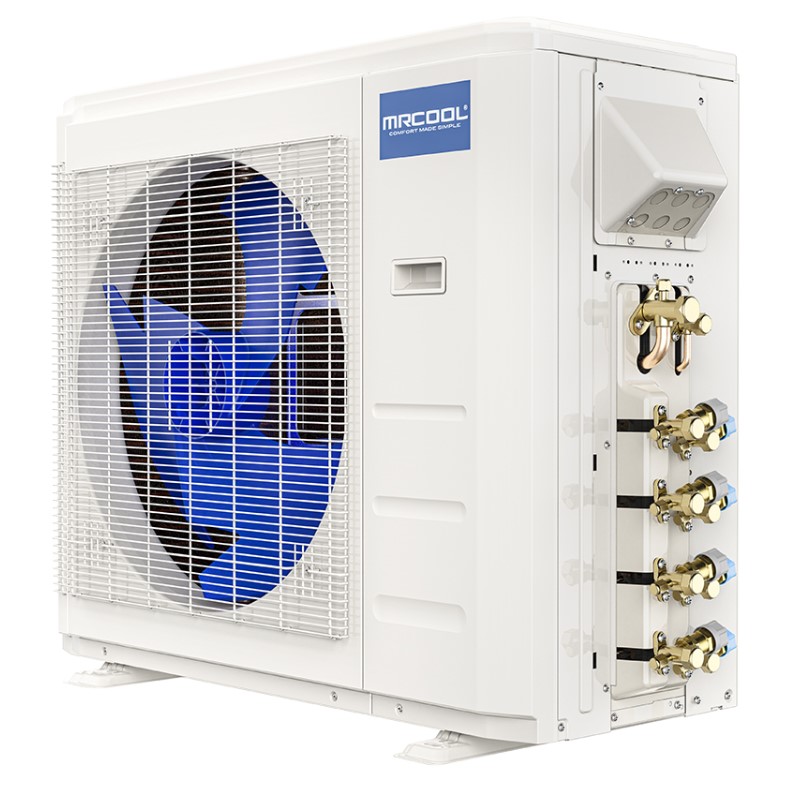

DIY 4th Generation Multi-Zone 4-Zone Condenser


Please select a store to view pricing and availability.

* Estimated stock levels as of Mon, Dec 4, 2023. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.

  • Up To 21.5 SEER
  • Gold Fin® Condenser: Corrosion-Resistant Coastal Living
  • Energy Efficient DC Inverter
  • R-410A Environmentally Friendly Refrigerant
  • Line sizes 1/4”, 1/2” & 3/8”, 5/8”


The 4th Generation MRCOOL® DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion. MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.



Amps Max Fuse Breaker: 45A Min Circuit Capacity: 27A
BTU 36,000
CFM 2147.06
Color White
Compressor Type Rotary
Cooling Capacity 36,000 BTU
Decibel Rating (dB) 65
HSPF hspf4/hspf5 : 11/8.5
Heating Capacity 36,000 BTU
Hertz 60
Liquid Line Diameter 1/4 in (3/8 in with adaptor)
Phase 1
SEER 21.5
Suction Line Diameter 1/2 in (5/8 in with adaptor)
Type Condenser
Volts 208-230

Manufacturing Details
The following information is subject to change without notice

Manufacturer Warranty Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
Prop 65 Warning Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Label Information

Certification, Codes, Standards Energy Star, UL Listed, AHRI Certified
