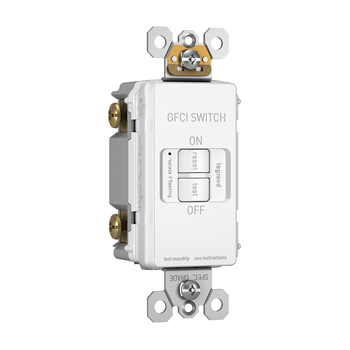

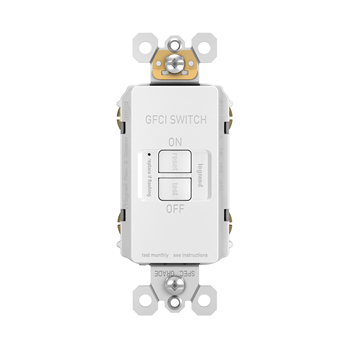

Legrand/Pass & Seymour White Spec-Grade Self-Test Dead Front GFCI Receptacle
- Some stock photographs may show options that are not included. Please check product description.
White Spec-Grade Self-Test Dead Front GFCI Receptacle
- Mfg.#
- 2087WCCD4
- Sku#
- 224949
Please select a store to view pricing and availability.
* Estimated stock levels as of Thu, Sep 21, 2023. All items subject to prior sale. Prices may vary between stores and online. Please call ahead to confirm availability of items marked as Limited Stock.
- Part of the all-new radiant® collection.
- Two back-wire holes per terminal.
- Class A rated GFCI.
- Supplied with matching TP wall plate.
- Supply Voltage: 125VAC, 60 Hz
- Supply Voltage Range: 102-132 VAC
- Trip Threshold: 5 ± 1 m
- Trip Time: 0.025 sec., nominal per UL Standard
- 20 Amp feed-thru capacity
- Rated as a 1 ½ HP motor control switch
- Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
- Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
- Auto-Ground clip assures a positive ground to metal box.
- Meets 2015 UL requirements.
- Feed-thru wiring configuration allows GFCI to protect downstream receptacles.
- Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
- Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
- Trip indicator light (red LED).
- Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.
- Ground screw has back-wire clamp for easy installation.
- 10kA short circuit rating.
- Mounting screws are shipped captive in the device and wall plate for easier installation.
- High-impact-resistant thermoplastic construction.
- Extra-long strap.
- Button colors match the device face.
- Dual-direction test and reset buttons.
Description
The radiant collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. radiant Screwless Wall Plate not included.
Specifications
General
| Amps | 20 |
|---|---|
| Collection | radiant® |
| Color | White |
| Gangs | 1 |
| Indoor/Outdoor | Indoor |
| Mounting Type | Box |
| NEMA Configuration | 5-20R |
| Poles | Double Pole |
| Self-Test | Yes |
| Type | GFCI Dead Front Receptacle |
| Volts | 125 |
Manufacturing Details
The following information is subject to change without notice
| Certification, Codes, Standards | cULus Listed |
|---|---|
| Country of Origin | CN |
| Manufacturer Warranty | 1 yr Limited |
